Section n°4 - SEALED CONNECTORS & CONTACTS

Title: PULL-TO-SEAT SERIES CONNECTORS & CONTACTS

Section summary
product miniature
4.80 PULL - TO - SEAT Receptable Housings
APPLICATION: ISUZU cars.
CodeTotal Number of WaysKit CodeColorRaw Material
61848726624black/greenPA 6.6

Possible to buy in kit version: 6624 - KIT P.F. SERIE PULL-TO-SEAT 2P NERO/VERD

40359526625black/blackPA 6.6

Possible to buy in kit version: 6625 - KIT P.F. SERIE PULL-TO-SEAT 2P NERO/NERO

60938436626black/violetPA 6.6

Possible to buy in kit version: 6626 - KIT P.F. SERIE PULL-TO-SEAT 3P NERO/VIOL

61834436627black/greyPA 6.6

Possible to buy in kit version: 6627 - KIT P.F. SERIE PULL-TO-SEAT 3P NERO/GRIO

40146246628black/orangePA 6.6

Possible to buy in kit version: 6628 - KIT P.F. SERIE PULL-TO-SEAT 4P NERO/ARAN

4.80 PULL - TO - SEAT Receptable Housings
Picture of product:
Code:618487
Total Number of Ways:2
Kit Code:6624
Color:black/green
Raw Material:PA 6.6

Possible to buy in kit version: 6624 - KIT P.F. SERIE PULL-TO-SEAT 2P NERO/VERD

Picture of product:
Code:403595
Total Number of Ways:2
Kit Code:6625
Color:black/black
Raw Material:PA 6.6

Possible to buy in kit version: 6625 - KIT P.F. SERIE PULL-TO-SEAT 2P NERO/NERO

Picture of product:
Code:609384
Total Number of Ways:3
Kit Code:6626
Color:black/violet
Raw Material:PA 6.6

Possible to buy in kit version: 6626 - KIT P.F. SERIE PULL-TO-SEAT 3P NERO/VIOL

Picture of product:

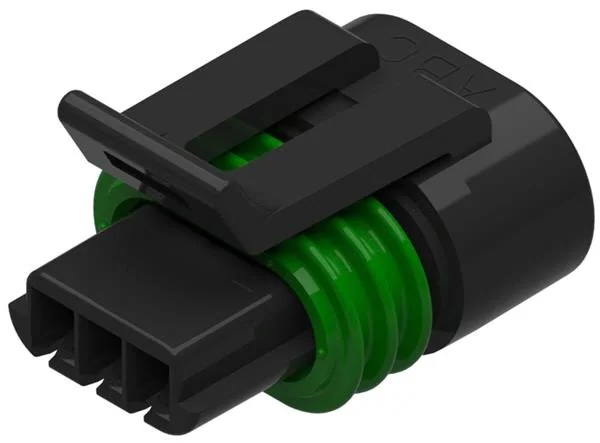

Code:618344
Total Number of Ways:3
Kit Code:6627
Color:black/grey
Raw Material:PA 6.6

Possible to buy in kit version: 6627 - KIT P.F. SERIE PULL-TO-SEAT 3P NERO/GRIO

Picture of product:
Code:401462
Total Number of Ways:4
Kit Code:6628
Color:black/orange
Raw Material:PA 6.6

Possible to buy in kit version: 6628 - KIT P.F. SERIE PULL-TO-SEAT 4P NERO/ARAN

product miniature
4.81 PULL - TO - SEAT Receptable Contacts
To use il 22125 for the connector 609384
CodeIndustrial CodeWire Size Range (mm2)Raw MaterialExtraction ToolHand Tool
221256109870,50 - 1,00Bz Ph880693991
64266166220,75 - 1,00Bz Ph880693991
4.81 PULL - TO - SEAT Receptable Contacts
Picture of product:
Code:22125
Industrial Code:610987
Wire Size Range (mm2):0,50 - 1,00
Raw Material:Bz Ph
Extraction Tool:88069
Hand Tool:3991
Picture of product:
Code:6426
Industrial Code:616622
Wire Size Range (mm2):0,75 - 1,00
Raw Material:Bz Ph
Extraction Tool:88069
Hand Tool:3991
