Section n°4 - SEALED CONNECTORS & CONTACTS

Title: MQS SERIES CONNECTORS & CONTACTS

Section summary
product miniature
4.53 MQS Serie Connectors
* APPLICATION: NEW HOLLAND high pressure oil sensor.
CodeTotal Number of WaysKit CodeTypeColorRaw Material
284703/126752CblackPA 6.6

Possible to buy in kit version: 6752 - KIT CONN MQS PF DUCATO SENSORE ABS 2P NE

1/967644/126923AblackPA 6.6

Possible to buy in kit version: 6923 - KIT CONN PF MQS PL SDC 2P NERO

1/967642/136921AblackPA 6.6

Possible to buy in kit version: 6921 - KIT CONN PF MQS PL SDC 3P NERO

1/967640/147135AblackPA 6.6

Possible to buy in kit version: 7135 - KIT CONNETTORE PF MQS 4P

1/967616/166695BblackPA 6.6

Possible to buy in kit version: 6695 - KIT P.F. SERIE MQS 6P NERO

1/1534229/187134BblackPA 6.6

Possible to buy in kit version: 7134 - KIT CONNETTORE PF MQS 8P

4.53 MQS Serie Connectors

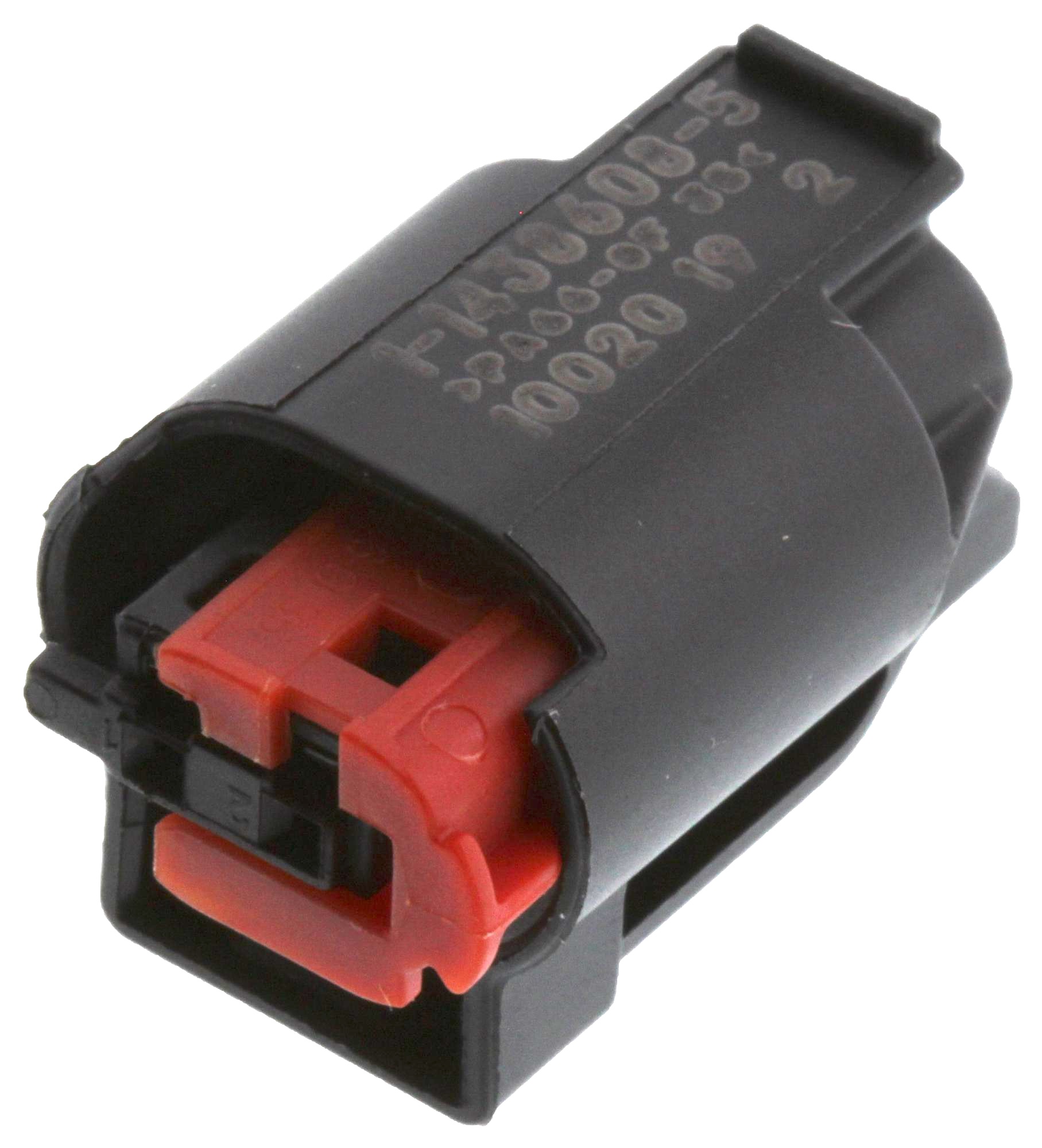

Picture of product:
Code:284703/1
Total Number of Ways:2
Kit Code:6752
Type:C
Color:black
Raw Material:PA 6.6

Possible to buy in kit version: 6752 - KIT CONN MQS PF DUCATO SENSORE ABS 2P NE

Picture of product:
Code:1/967644/1
Total Number of Ways:2
Kit Code:6923
Type:A
Color:black
Raw Material:PA 6.6

Possible to buy in kit version: 6923 - KIT CONN PF MQS PL SDC 2P NERO

Picture of product:
Code:1/967642/1
Total Number of Ways:3
Kit Code:6921
Type:A
Color:black
Raw Material:PA 6.6

Possible to buy in kit version: 6921 - KIT CONN PF MQS PL SDC 3P NERO

Picture of product:
Code:1/967640/1
Total Number of Ways:4
Kit Code:7135
Type:A
Color:black
Raw Material:PA 6.6

Possible to buy in kit version: 7135 - KIT CONNETTORE PF MQS 4P

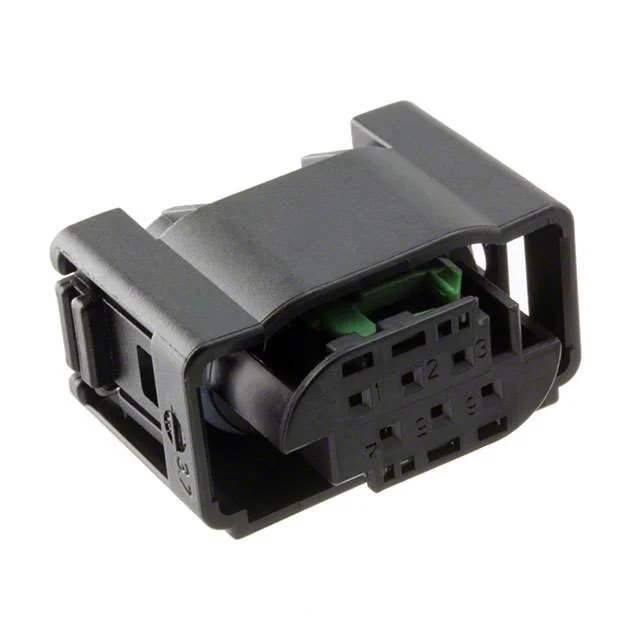

Picture of product:
Code:1/967616/1
Total Number of Ways:6
Kit Code:6695
Type:B
Color:black
Raw Material:PA 6.6

Possible to buy in kit version: 6695 - KIT P.F. SERIE MQS 6P NERO

Picture of product:
Code:1/1534229/1
Total Number of Ways:8
Kit Code:7134
Type:B
Color:black
Raw Material:PA 6.6

Possible to buy in kit version: 7134 - KIT CONNETTORE PF MQS 8P

product miniature
4.54 MQS receptacle Contact
CodeIndustrial CodeWire Size Range (mm2)Raw MaterialExtraction ToolHand Tool
51235/962885/10,25 - 0,50Bz Ph Sn902073989 + 3989/3
4.54 MQS receptacle Contact
Picture of product:
Code:5123
Industrial Code:5/962885/1
Wire Size Range (mm2):0,25 - 0,50
Raw Material:Bz Ph Sn
Extraction Tool:90207
Hand Tool:3989 + 3989/3
product miniature
4.55 Single Wire Seals
CodeWire Size Range (mm2)ColorRaw MaterialExt. Diam.
967067/20,50 - 0,75yellowsilicone4,1
967067/10,75 - 1,00greensilicone4,1
963531/1Plugwhitesilicone3,9
4.55 Single Wire Seals
Picture of product:
Code:967067/2
Wire Size Range (mm2):0,50 - 0,75
Color:yellow
Raw Material:silicone
Ext. Diam.:4,1
Picture of product:
Code:967067/1
Wire Size Range (mm2):0,75 - 1,00
Color:green
Raw Material:silicone
Ext. Diam.:4,1
Picture of product:
Code:963531/1
Wire Size Range (mm2):Plug
Color:white
Raw Material:silicone
Ext. Diam.:3,9
