Section n°4 - SEALED CONNECTORS & CONTACTS

Title: LEAVYSEAL CONNECTORS &CONTACTS

Section summary
product miniature
4.590 AMP MCP Receptacle Housing 1,5
CodeTotal Number of WaysKit CodeCoverColorRaw Material
3/2112231/14676232112233/1blackpbt

Possible to buy in kit version: 7623 - KIT MCP 1,5 PF 46 VIE

3/2112231/24675482112233/1greyPA 6.6

Possible to buy in kit version: 7548 - KIT MCP 1,5 PF 46 VIE GRIGIO

1703998/19274081703997/1blackPA 6.6

Possible to buy in kit version: 7408 - KIT 92 VIE PER CENTRALINA MOTORE NAUTICO

APP. kit 7408: marine engines MTU-X2/X3 ECU 9 e X2 ECU 7
4.590 AMP MCP Receptacle Housing 1,5
Picture of product:
Code:3/2112231/1
Total Number of Ways:46
Kit Code:7623
Cover:2112233/1
Color:black
Raw Material:pbt

Possible to buy in kit version: 7623 - KIT MCP 1,5 PF 46 VIE

Picture of product:
Code:3/2112231/2
Total Number of Ways:46
Kit Code:7548
Cover:2112233/1
Color:grey
Raw Material:PA 6.6

Possible to buy in kit version: 7548 - KIT MCP 1,5 PF 46 VIE GRIGIO

Picture of product:
Code:1703998/1
Total Number of Ways:92
Kit Code:7408
Cover:1703997/1
Color:black
Raw Material:PA 6.6

Possible to buy in kit version: 7408 - KIT 92 VIE PER CENTRALINA MOTORE NAUTICO

product miniature
4.591 Mixed LEAVYSEAL Receptacle Housing
CodeTotal Number of WaysKit CodeCoverColorRaw Material
2/1418883/16272901418882/1greypbt

Possible to buy in kit version: 7290 - KIT 62 VIE PF LEAVYSEAL GRIGIO

1/1418883/16271721418882/1blackPA 6.6

Possible to buy in kit version: 7172 - KIT 62 VIE PF LEAVYSEAL NERO

4.591 Mixed LEAVYSEAL Receptacle Housing
Picture of product:
Code:2/1418883/1
Total Number of Ways:62
Kit Code:7290
Cover:1418882/1
Color:grey
Raw Material:pbt

Possible to buy in kit version: 7290 - KIT 62 VIE PF LEAVYSEAL GRIGIO

Picture of product:
Code:1/1418883/1
Total Number of Ways:62
Kit Code:7172
Cover:1418882/1
Color:black
Raw Material:PA 6.6

Possible to buy in kit version: 7172 - KIT 62 VIE PF LEAVYSEAL NERO

product miniature
4.592 LEAVYSEAL AMP MCP 1,5 + 2,8 + 6,3 Receptacle Housing
CodeTotal Number of WaysKit CodeCoverColorRaw Material
1/2112035/12671702112046/1blackpbt

Possible to buy in kit version: 7170 - KIT 26 VIE PF LEAVYSEAL

1/1823402/1297588-blackPBT GF30

Possible to buy in kit version: 7588 - KIT CONNETTORE 29 VIE PF NERO

4.592 LEAVYSEAL AMP MCP 1,5 + 2,8 + 6,3 Receptacle Housing
Picture of product:
Code:1/2112035/1
Total Number of Ways:26
Kit Code:7170
Cover:2112046/1
Color:black
Raw Material:pbt

Possible to buy in kit version: 7170 - KIT 26 VIE PF LEAVYSEAL

Picture of product:
Code:1/1823402/1
Total Number of Ways:29
Kit Code:7588
Cover:-
Color:black
Raw Material:PBT GF30

Possible to buy in kit version: 7588 - KIT CONNETTORE 29 VIE PF NERO

product miniature
4.593 LEAVYSEAL Receptacle Housing
CodeTotal Number of WaysKit CodeCoverColorRaw Material
1/2208686/12171579/1394050/1blackPA 6.6

Possible to buy in kit version: 7157 - KIT CAMBIO ROBOT.IVECO

4.593 LEAVYSEAL Receptacle Housing
Picture of product:
Code:1/2208686/1
Total Number of Ways:21
Kit Code:7157
Cover:9/1394050/1
Color:black
Raw Material:PA 6.6

Possible to buy in kit version: 7157 - KIT CAMBIO ROBOT.IVECO

product miniature

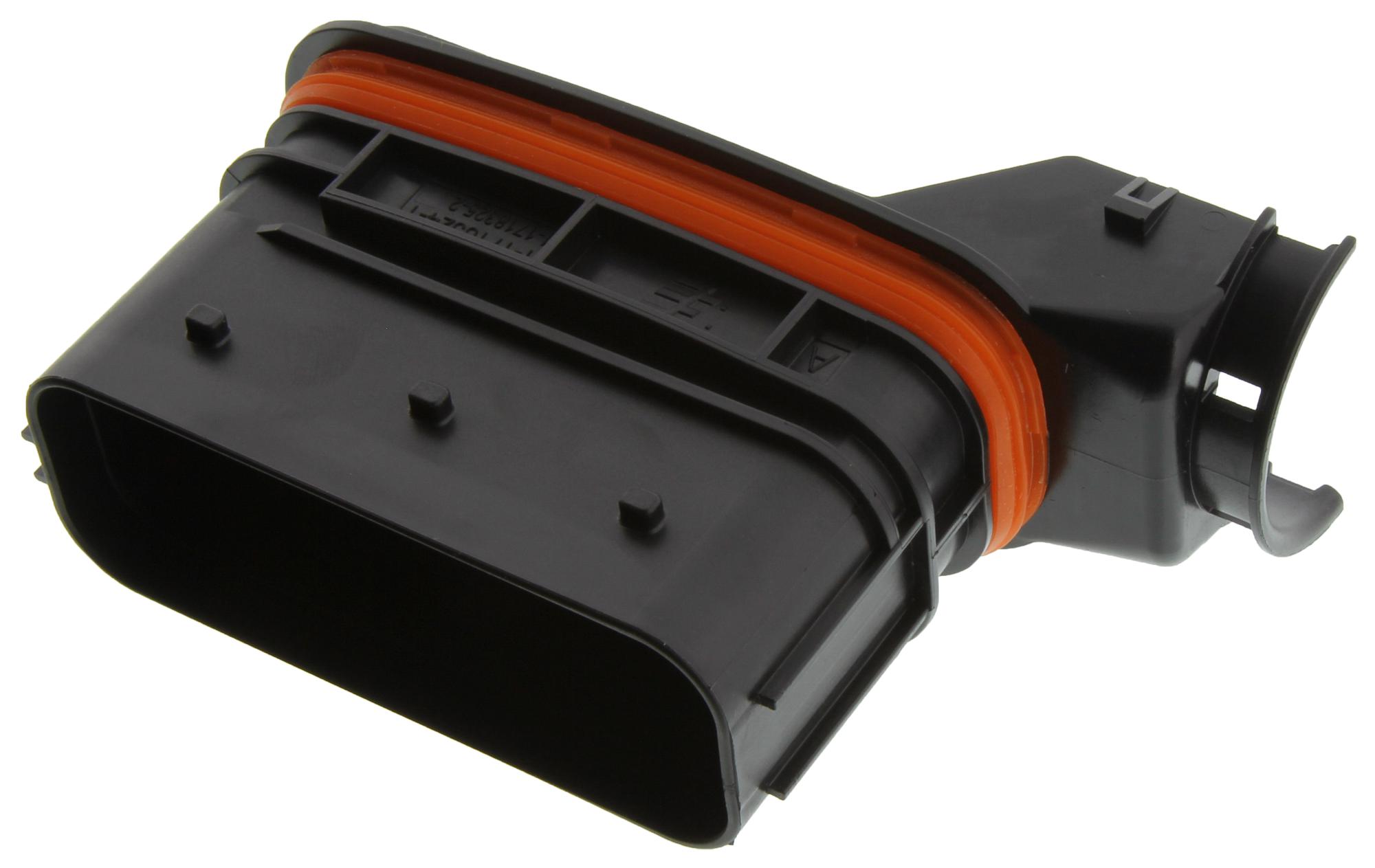

4.594 LEAVYSEAL AMP MCP 1,5+2,8 Tab Housing
CodeTotal Number of WaysKit CodeCoverColorRaw Material
1/1718324/16271731418882/1blackPA 6.6

Possible to buy in kit version: 7173 - KIT 62 VIE PM LEAVYSEAL

4.594 LEAVYSEAL AMP MCP 1,5+2,8 Tab Housing
Picture of product:
Code:1/1718324/1
Total Number of Ways:62
Kit Code:7173
Cover:1418882/1
Color:black
Raw Material:PA 6.6

Possible to buy in kit version: 7173 - KIT 62 VIE PM LEAVYSEAL

product miniature
4.595 LEAVYSEAL AMP MCP 1,5+2,8+6,3 Tab Housing
CodeTotal Number of WaysKit CodeCoverColorRaw Material
1/2112041/22671712112046/1blackPA 6.6

Possible to buy in kit version: 7171 - KIT 26 VIE PM LEAVYSEAL

4.595 LEAVYSEAL AMP MCP 1,5+2,8+6,3 Tab Housing
Picture of product:
Code:1/2112041/2
Total Number of Ways:26
Kit Code:7171
Cover:2112046/1
Color:black
Raw Material:PA 6.6

Possible to buy in kit version: 7171 - KIT 26 VIE PM LEAVYSEAL

product miniature
4.596 LEAVYSEAL AMP MCP 2,8 Tab Housing
CodeTotal Number of WaysKit CodeColorRaw Material
1/2112162/1217452blackPA 6.6

Possible to buy in kit version: 7452 - KIT LEAVYSEAL 21 PM CON FLANGIA

5/1718323/1397437greenPA 6.6

Possible to buy in kit version: 7437 - KIT LEAVYSEAL 39 VIE PM

4.596 LEAVYSEAL AMP MCP 2,8 Tab Housing
Picture of product:
Code:1/2112162/1
Total Number of Ways:21
Kit Code:7452
Color:black
Raw Material:PA 6.6

Possible to buy in kit version: 7452 - KIT LEAVYSEAL 21 PM CON FLANGIA

Picture of product:
Code:5/1718323/1
Total Number of Ways:39
Kit Code:7437
Color:green
Raw Material:PA 6.6

Possible to buy in kit version: 7437 - KIT LEAVYSEAL 39 VIE PM

product miniature
4.597 Leavyseal Receptable Contact
CodeIndustrial CodeWire Size Range (mm2)Raw MaterialExtraction ToolHand Tool
34151241380/10,50 - 1,00Bz Ph Sn132225, 240083989 + 3989/2
4.597 Leavyseal Receptable Contact
Picture of product:
Code:3415
Industrial Code:1241380/1
Wire Size Range (mm2):0,50 - 1,00
Raw Material:Bz Ph Sn
Extraction Tool:132225, 24008
Hand Tool:3989 + 3989/2
product miniature
4.598 2,8 Leavyseal Receptable Contact
CodeIndustrial CodeWire Size Range (mm2)Raw MaterialExtraction ToolHand Tool
3417967542/10,50 - 1,00Bz Ph Sn88040, 240003976 + 3982
34141/968857/11,00 - 2,50Cu Ni Si240003976 + 3982
4.598 2,8 Leavyseal Receptable Contact
Picture of product:
Code:3417
Industrial Code:967542/1
Wire Size Range (mm2):0,50 - 1,00
Raw Material:Bz Ph Sn
Extraction Tool:88040, 24000
Hand Tool:3976 + 3982
Picture of product:
Code:3414
Industrial Code:1/968857/1
Wire Size Range (mm2):1,00 - 2,50
Raw Material:Cu Ni Si
Extraction Tool:24000
Hand Tool:3976 + 3982
product miniature
4.599 LEAVYSEAL MCP 6,3 Female Contact
CodeIndustrial CodeWire Size Range (mm2)Raw MaterialExtraction Tool
34191241418/44,00 - 6,00silver132381
4.599 LEAVYSEAL MCP 6,3 Female Contact
Picture of product:
Code:3419
Industrial Code:1241418/4
Wire Size Range (mm2):4,00 - 6,00
Raw Material:silver
Extraction Tool:132381
product miniature
4.600 LEAVYSEAL Tab Contact
CodeIndustrial CodeWire Size Range (mm2)Raw MaterialExtraction ToolHand Tool
3416964269/20,50 - 1,00Bz Ph Sn240083989 + 3989/2
4.600 LEAVYSEAL Tab Contact
Picture of product:
Code:3416
Industrial Code:964269/2
Wire Size Range (mm2):0,50 - 1,00
Raw Material:Bz Ph Sn
Extraction Tool:24008
Hand Tool:3989 + 3989/2
product miniature
4.601 LEAVYSEAL AMP MCP 2,8 Tab Contact
CodeIndustrial CodeWire Size Range (mm2)Raw MaterialExtraction ToolHand Tool
34182/964300/10,5 - 2,0Bz Ph Sn240003976 + 3982
4.601 LEAVYSEAL AMP MCP 2,8 Tab Contact
Picture of product:
Code:3418
Industrial Code:2/964300/1
Wire Size Range (mm2):0,5 - 2,0
Raw Material:Bz Ph Sn
Extraction Tool:24000
Hand Tool:3976 + 3982
product miniature

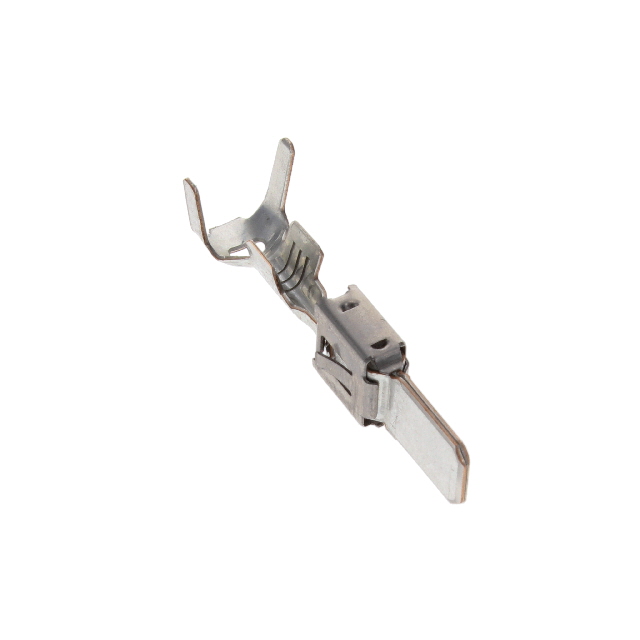

4.602 LEAVYSEAL AMP MCP 6,3 Tab Contact
CodeIndustrial CodeWire Size Range (mm2)Raw MaterialExtraction ToolHand Tool
1/962918/11/962918/11,00 - 2,50tin-plated brass1323813997
4.602 LEAVYSEAL AMP MCP 6,3 Tab Contact
Picture of product:
Code:1/962918/1
Industrial Code:1/962918/1
Wire Size Range (mm2):1,00 - 2,50
Raw Material:tin-plated brass
Extraction Tool:132381
Hand Tool:3997
product miniature
4.603 1,5 Leavyseal Single Wire Seal
CodeIndustrial CodeWire Size Range (mm2)ColorRaw MaterialExt. Diam.
963530/1-0,50 - 0,75greysilicone3,9
828905/1-2,00 - 2,50whitesilicone5,6
221106540042,50 - 4,00redsilicone9
4.603 1,5 Leavyseal Single Wire Seal
Picture of product:
Code:963530/1
Industrial Code:-
Wire Size Range (mm2):0,50 - 0,75
Color:grey
Raw Material:silicone
Ext. Diam.:3,9
Picture of product:
Code:828905/1
Industrial Code:-
Wire Size Range (mm2):2,00 - 2,50
Color:white
Raw Material:silicone
Ext. Diam.:5,6
Picture of product:
Code:22110
Industrial Code:654004
Wire Size Range (mm2):2,50 - 4,00
Color:red
Raw Material:silicone
Ext. Diam.:9
