Section n°4 - SEALED CONNECTORS & CONTACTS
Title: HDP SIZE 24 SERIES DEUTSCH CONNECTORS & CONTACTS
Section summary
4.99 DEUTSCH HDP Size 24 Receptacle Housing
| Code | Total Number of Ways | Kit Code | Color | Raw Material | Contact Size | Gsket |
|---|---|---|---|---|---|---|
| HDP26-24-31SE | 31 | 7539 | black | PA 6.6 | 24 | extra subtle |
Possible to buy in kit version: 7539 - KIT DEUTSCH HDP 31 VIE PF GUARN. E | ||||||
| HDP26-24-31ST | 31 | 7538 | black | PA 6.6 | 24 | subtle |
Possible to buy in kit version: 7538 - KIT DEUTSCH HDP 31 VIE PF GUARN. T | ||||||
4.99 DEUTSCH HDP Size 24 Receptacle Housing
| Code: | HDP26-24-31SE |
| Total Number of Ways: | 31 |
| Kit Code: | 7539 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Contact Size: | 24 |
| Gsket: | extra subtle |
Possible to buy in kit version: 7539 - KIT DEUTSCH HDP 31 VIE PF GUARN. E
| Code: | HDP26-24-31ST |
| Total Number of Ways: | 31 |
| Kit Code: | 7538 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Contact Size: | 24 |
| Gsket: | subtle |
Possible to buy in kit version: 7538 - KIT DEUTSCH HDP 31 VIE PF GUARN. T
4.100 DEUTSCH HDP Size 24 Tab Housing
| Code | Total Number of Ways | Kit Code | Color | Raw Material | Contact Size | Gsket |
|---|---|---|---|---|---|---|
| HDP26-24-31PT | 31 | 7254 | black | PA 6.6 | 24 | subtle |
Possible to buy in kit version: 7254 - KIT DEUTSCH HDP 31 VIE PM | ||||||
| HDP26-24-31PE | 31 | 7338 | black | PA 6.6 | 24 | extra subtle |
Possible to buy in kit version: 7338 - KIT DEUTSCH HDP PM 31 VIE | ||||||
4.100 DEUTSCH HDP Size 24 Tab Housing
| Code: | HDP26-24-31PT |
| Total Number of Ways: | 31 |
| Kit Code: | 7254 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Contact Size: | 24 |
| Gsket: | subtle |
Possible to buy in kit version: 7254 - KIT DEUTSCH HDP 31 VIE PM
| Code: | HDP26-24-31PE |
| Total Number of Ways: | 31 |
| Kit Code: | 7338 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Contact Size: | 24 |
| Gsket: | extra subtle |
Possible to buy in kit version: 7338 - KIT DEUTSCH HDP PM 31 VIE
4.101 DEUTSCH HDP Size 24 Tab Housing
| Code | Total Number of Ways | Kit Code | Color | Raw Material | Contact Size | Gsket |
|---|---|---|---|---|---|---|
| HDP24-24-31PE | 31 | 7561 | black | PA 6.6 | 24 | extra subtle |
Possible to buy in kit version: 7561 - KIT DEUTSCH HDP 31 VIE PM GUARN. E | ||||||
4.101 DEUTSCH HDP Size 24 Tab Housing
| Code: | HDP24-24-31PE |
| Total Number of Ways: | 31 |
| Kit Code: | 7561 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Contact Size: | 24 |
| Gsket: | extra subtle |
Possible to buy in kit version: 7561 - KIT DEUTSCH HDP 31 VIE PM GUARN. E

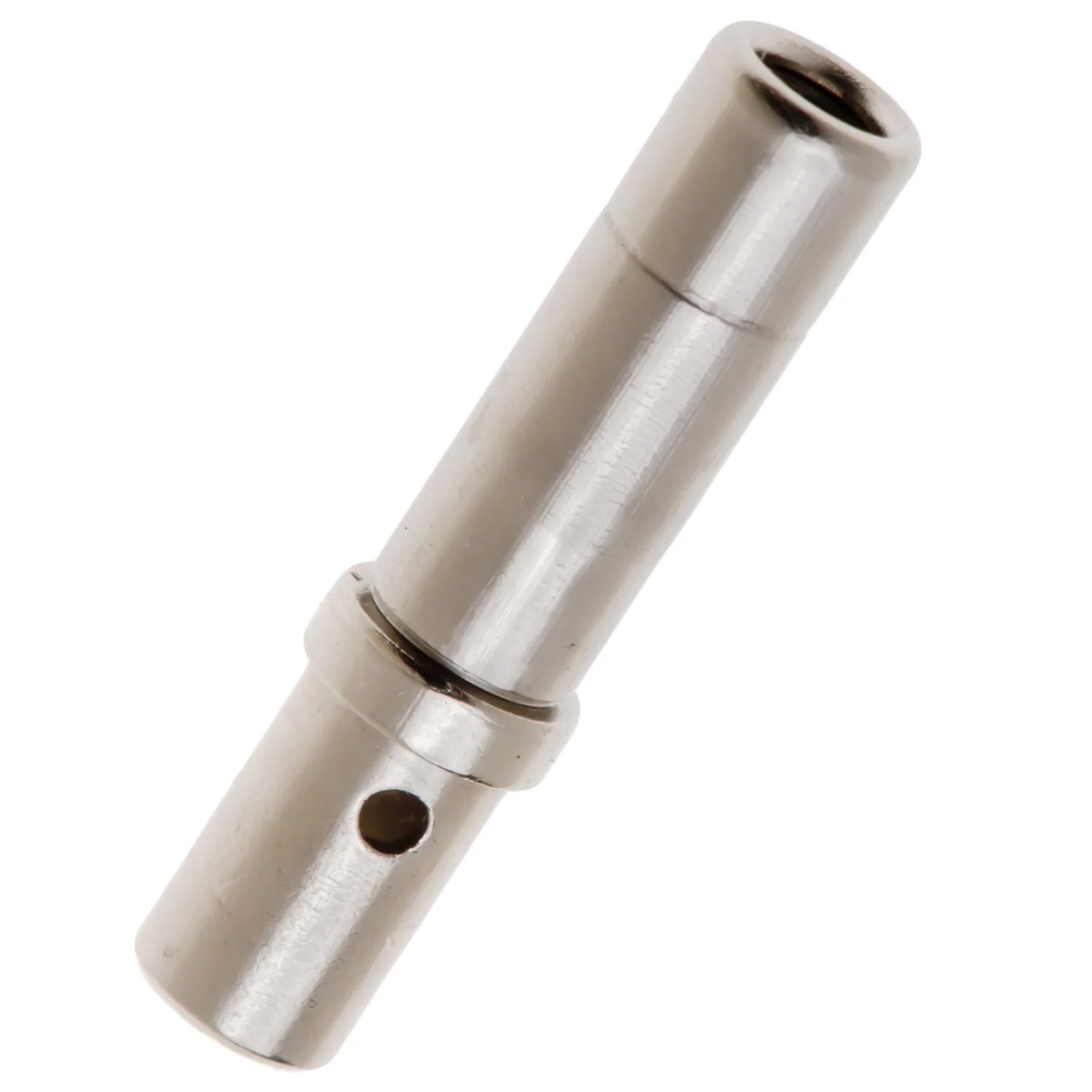

4.102 DEUTSCH HDP /Size 16) Receptacle Contact
4.103 Turned DEUTSCH HDP Series Receptacle Contact
| Code | Industrial Code | Wire Size Range (mm2) | Contact Size | Extraction Tool | Hand Tool | Notes |
|---|---|---|---|---|---|---|
| 4949 | 0462-201-16141 | 0,50 - 1,50 | 16 | 90016 | 3998 | turned |
| 4948 | 0462-203-12141 | 1,50 - 2,00 | 16 | 90016 | 3998 | turned |
4.103 Turned DEUTSCH HDP Series Receptacle Contact
| Code: | 4949 |
| Industrial Code: | 0462-201-16141 |
| Wire Size Range (mm2): | 0,50 - 1,50 |
| Contact Size: | 16 |
| Extraction Tool: | 90016 |
| Hand Tool: | 3998 |
| Notes: | turned |
| Code: | 4948 |
| Industrial Code: | 0462-203-12141 |
| Wire Size Range (mm2): | 1,50 - 2,00 |
| Contact Size: | 16 |
| Extraction Tool: | 90016 |
| Hand Tool: | 3998 |
| Notes: | turned |
4.104 DEUTSCH HDP (Size 16) Tab Contact
| Code: | 4960 |
| Industrial Code: | 1060-16-0122 |
| Wire Size Range (mm2): | 0,75 - 2,00 |
| Contact Size: | 16 |
| Extraction Tool: | 24060 |
| Hand Tool: | 3991 + 3991/1 |
Delivered with:
