Title: HD (SIZE 16) DEUTSCH SERIES CONNECTORS & CONTACTS
Section summary
4.42 HD DEUTSCH (Size 16) Receptable Housing
| Code | Total Number of Ways | Kit Code | Color | Raw Material | Contact Size |
|---|---|---|---|---|---|
| HD36-18-14SN | 14 | 7280 | silver | aluminium | 18 |
Possible to buy in kit version: 7280 - KIT CONNETTORE 14 VIE PF HD | |||||
| HD36-24-23SE | 23 | 7324 | grey | - | 24 |
Possible to buy in kit version: 7324 - KIT DEUTSCH DT PF 23 VIE | |||||
| HD36-24-31SE-059 | 31 | 7309 | silver | aluminium | 24 |
Possible to buy in kit version: 7309 - KIT CONNETTORE 31 VIE PF DEUTSCH | |||||
4.42 HD DEUTSCH (Size 16) Receptable Housing
| Code: | HD36-18-14SN |
| Total Number of Ways: | 14 |
| Kit Code: | 7280 |
| Color: | silver |
| Raw Material: | aluminium |
| Contact Size: | 18 |
Possible to buy in kit version: 7280 - KIT CONNETTORE 14 VIE PF HD
| Code: | HD36-24-23SE |
| Total Number of Ways: | 23 |
| Kit Code: | 7324 |
| Color: | grey |
| Raw Material: | - |
| Contact Size: | 24 |
Possible to buy in kit version: 7324 - KIT DEUTSCH DT PF 23 VIE
| Code: | HD36-24-31SE-059 |
| Total Number of Ways: | 31 |
| Kit Code: | 7309 |
| Color: | silver |
| Raw Material: | aluminium |
| Contact Size: | 24 |
Possible to buy in kit version: 7309 - KIT CONNETTORE 31 VIE PF DEUTSCH
4.43 DEUTSCH HD (Size 16) Tab Housing
| Code | Total Number of Ways | Kit Code | Color | Raw Material | Contact Size |
|---|---|---|---|---|---|
| HD34-18-14PN | 14 | 7281 | silver | aluminium | 18 |
Possible to buy in kit version: 7281 - KIT CONNETTORE 14 VIE PM HD | |||||
| HD34-24-23PE | 23 | 7323 | grey | - | 24 |
Possible to buy in kit version: 7323 - KIT DEUTSCH DT PM 23 VIE | |||||
| HD34-24-31PE-059 | 31 | 7310 | silver | aluminium | 24 |
Possible to buy in kit version: 7310 - KIT CONNETTORE 31 VIE PM DEUTSCH | |||||
4.43 DEUTSCH HD (Size 16) Tab Housing
| Code: | HD34-18-14PN |
| Total Number of Ways: | 14 |
| Kit Code: | 7281 |
| Color: | silver |
| Raw Material: | aluminium |
| Contact Size: | 18 |
Possible to buy in kit version: 7281 - KIT CONNETTORE 14 VIE PM HD
| Code: | HD34-24-23PE |
| Total Number of Ways: | 23 |
| Kit Code: | 7323 |
| Color: | grey |
| Raw Material: | - |
| Contact Size: | 24 |
Possible to buy in kit version: 7323 - KIT DEUTSCH DT PM 23 VIE
| Code: | HD34-24-31PE-059 |
| Total Number of Ways: | 31 |
| Kit Code: | 7310 |
| Color: | silver |
| Raw Material: | aluminium |
| Contact Size: | 24 |
Possible to buy in kit version: 7310 - KIT CONNETTORE 31 VIE PM DEUTSCH
4.44 DEUTSCH HD (Size 16) Female Contact
4.45 DEUTSCH HD (Size 16) Male Contact
| Code | Industrial Code | Wire Size Range (mm2) | Contact Size | Extraction Tool | Hand Tool |
|---|---|---|---|---|---|
| 4960 | 1060-16-0122 | 0,75 - 2,00 | 16 | 24060 | 3991 |
4.45 DEUTSCH HD (Size 16) Male Contact
| Code: | 4960 |
| Industrial Code: | 1060-16-0122 |
| Wire Size Range (mm2): | 0,75 - 2,00 |
| Contact Size: | 16 |
| Extraction Tool: | 24060 |
| Hand Tool: | 3991 |

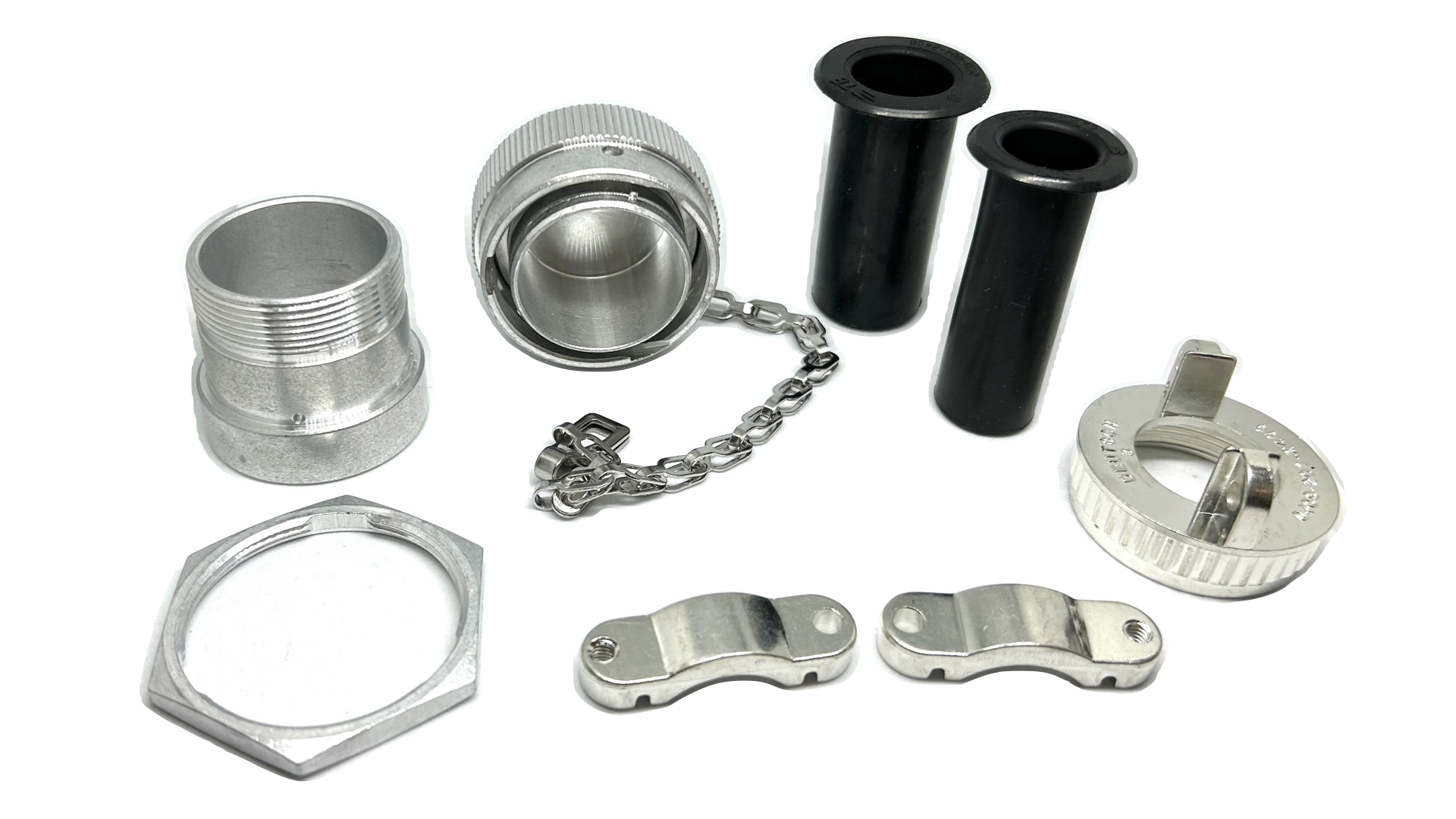

4.46 Metal Nut for DEUTSCH HD Series (Size 16)
| Code: | 112263-90 |
| Raw Material: | metal |
| Width: | 47,63 |
| Depth: | 4,52 |
Delivered with:
