Section n°4 - SEALED CONNECTORS & CONTACTS
Title: FEP FKG 1,5 SERIES CONNECTORS & CONTACTS FEP
Section summary
4.165 FEP 1,5 Receptacle Housings
| Code | Total Number of Ways | Kit Code | Type | Color | Image |
|---|---|---|---|---|---|
| 42123200 | 1 | 7242 | single line | black | A |
Possible to buy in kit version: 7242 - KIT CONNETTORE 1 VIA FEP | |||||
| 42121600 | 2 | 7062 | single line | black | B |
Possible to buy in kit version: 7062 - KIT CONN FEP 2P serie FKG-1,5 | |||||
| 42121300 | 3 | 7063 | single line | black | C |
Possible to buy in kit version: 7063 - KIT CONN FEP 3P serie FKG-1,5 | |||||
| 42122000 | 4 | 7349 | double row | black | D |
Possible to buy in kit version: 7349 - KIT FEP 1,5 PF 2 FILE 4 VIE | |||||
| 42121400 | 4 | 7064 | single line | black | E |
Possible to buy in kit version: 7064 - KIT CONN FEP 4P serie FKG-1,5 | |||||
| 42123000 | 5 | 7140 | single line | black | F |
Possible to buy in kit version: 7140 - KIT CONN FEP 1,5 PF 5P | |||||
| 42512300 | 5 | 7410 | single line | black | G |
Possible to buy in kit version: 7410 - KIT FEP 1,5 PF 5 VIE | |||||
| 42121700 | 6 | 6953 | double row | black | H |
Possible to buy in kit version: 6953 - KIT CONN FEP 1,5 6P NERO | |||||
| 42032800 | 6 | 7251 | double row | grey | I |
Possible to buy in kit version: 7251 - KIT CONNETTORE 6P SERIE 1.5 | |||||
| 42121000 | 8 | 7528 | double row | black | J |
Possible to buy in kit version: 7528 - KIT FEP 1,5 PF 8 VIE NERO FILA DOPPIA | |||||
| 42127000 | 14 | 7291 | double row | brown | K |
Possible to buy in kit version: 7291 - KIT 14 VIE PF FEP MARRONE | |||||
4.165 FEP 1,5 Receptacle Housings
| Code: | 42123200 |
| Total Number of Ways: | 1 |
| Kit Code: | 7242 |
| Type: | single line |
| Color: | black |
| Image: | A |
Possible to buy in kit version: 7242 - KIT CONNETTORE 1 VIA FEP
| Code: | 42121600 |
| Total Number of Ways: | 2 |
| Kit Code: | 7062 |
| Type: | single line |
| Color: | black |
| Image: | B |
Possible to buy in kit version: 7062 - KIT CONN FEP 2P serie FKG-1,5
| Code: | 42121300 |
| Total Number of Ways: | 3 |
| Kit Code: | 7063 |
| Type: | single line |
| Color: | black |
| Image: | C |
Possible to buy in kit version: 7063 - KIT CONN FEP 3P serie FKG-1,5
| Code: | 42122000 |
| Total Number of Ways: | 4 |
| Kit Code: | 7349 |
| Type: | double row |
| Color: | black |
| Image: | D |
Possible to buy in kit version: 7349 - KIT FEP 1,5 PF 2 FILE 4 VIE
| Code: | 42121400 |
| Total Number of Ways: | 4 |
| Kit Code: | 7064 |
| Type: | single line |
| Color: | black |
| Image: | E |
Possible to buy in kit version: 7064 - KIT CONN FEP 4P serie FKG-1,5
| Code: | 42123000 |
| Total Number of Ways: | 5 |
| Kit Code: | 7140 |
| Type: | single line |
| Color: | black |
| Image: | F |
Possible to buy in kit version: 7140 - KIT CONN FEP 1,5 PF 5P
| Code: | 42512300 |
| Total Number of Ways: | 5 |
| Kit Code: | 7410 |
| Type: | single line |
| Color: | black |
| Image: | G |
Possible to buy in kit version: 7410 - KIT FEP 1,5 PF 5 VIE
| Code: | 42121700 |
| Total Number of Ways: | 6 |
| Kit Code: | 6953 |
| Type: | double row |
| Color: | black |
| Image: | H |
Possible to buy in kit version: 6953 - KIT CONN FEP 1,5 6P NERO
| Code: | 42032800 |
| Total Number of Ways: | 6 |
| Kit Code: | 7251 |
| Type: | double row |
| Color: | grey |
| Image: | I |
Possible to buy in kit version: 7251 - KIT CONNETTORE 6P SERIE 1.5
| Code: | 42121000 |
| Total Number of Ways: | 8 |
| Kit Code: | 7528 |
| Type: | double row |
| Color: | black |
| Image: | J |
Possible to buy in kit version: 7528 - KIT FEP 1,5 PF 8 VIE NERO FILA DOPPIA
| Code: | 42127000 |
| Total Number of Ways: | 14 |
| Kit Code: | 7291 |
| Type: | double row |
| Color: | brown |
| Image: | K |
Possible to buy in kit version: 7291 - KIT 14 VIE PF FEP MARRONE
4.166 FEP 1,5 Receptacle Contacts
4.167 FEP 1,5 Single Wire Seal
| Code: | 964972/1 |
| Wire Size Range (mm2): | 2,00 - 2,50 |
| Color: | yellow |
| Raw Material: | silicone |
| Ext. Diam.: | 3,9 |
| Contact Size: | 1,5 |
| Code: | 963530/1 |
| Wire Size Range (mm2): | 0,50 - 0,75 |
| Color: | grey |
| Raw Material: | silicone |
| Ext. Diam.: | 3,9 |
| Contact Size: | 1,5 |
| Code: | 963531/1 |
| Wire Size Range (mm2): | Plug |
| Color: | white |
| Raw Material: | silicone |
| Ext. Diam.: | 3,9 |
| Contact Size: | 1,5 |
4.168 FEP 1,5 Tab Housing
| Code | Total Number of Ways | Kit Code | Type | Color | Image |
|---|---|---|---|---|---|
| 42068800 | 14 | 7341 | - | brown | E |
Possible to buy in kit version: 7341 - KIT FEP 1,5 PM 14 VIE MARRONE | |||||
| 42062500 | 2 | 7356 | single line | black | A |
Possible to buy in kit version: 7356 - KIT FEP 1,5 PM 2 VIE | |||||
| 42064400 | 4 | 7622 | single line | black | B |
Possible to buy in kit version: 7622 - KIT FEP 1,5 PM 4 VIE FILA SINGOLA NERO | |||||
| 42068400 | 4 | 7625 | double row | black | C |
Possible to buy in kit version: 7625 - KIT FEP 1,5 PM 4 VIE NERO FILA DOPPIA | |||||
| 42072100 | 6 | 7292 | double row | grey | D |
Possible to buy in kit version: 7292 - KIT 6 VIE PM FEP GRIGIO | |||||
4.168 FEP 1,5 Tab Housing

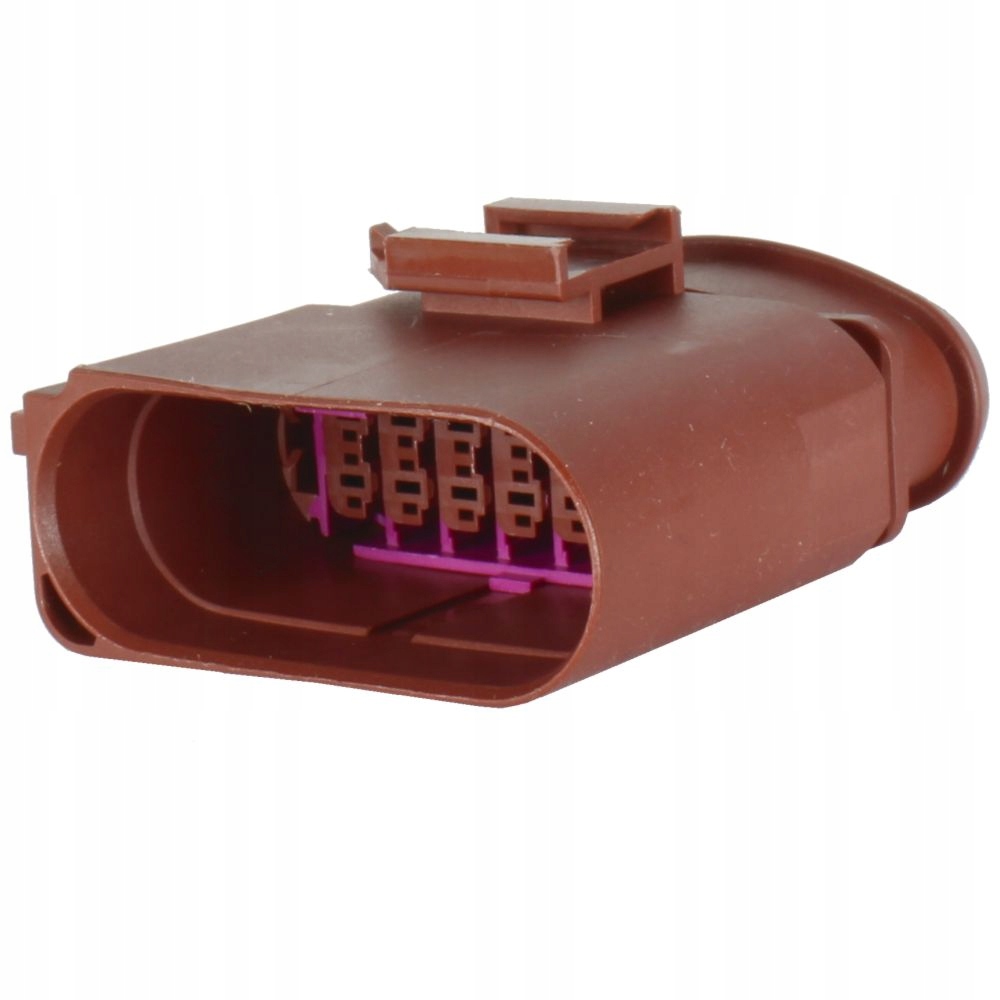

| Code: | 42068800 |
| Total Number of Ways: | 14 |
| Kit Code: | 7341 |
| Type: | - |
| Color: | brown |
| Image: | E |
Possible to buy in kit version: 7341 - KIT FEP 1,5 PM 14 VIE MARRONE
| Code: | 42062500 |
| Total Number of Ways: | 2 |
| Kit Code: | 7356 |
| Type: | single line |
| Color: | black |
| Image: | A |
Possible to buy in kit version: 7356 - KIT FEP 1,5 PM 2 VIE
| Code: | 42064400 |
| Total Number of Ways: | 4 |
| Kit Code: | 7622 |
| Type: | single line |
| Color: | black |
| Image: | B |
Possible to buy in kit version: 7622 - KIT FEP 1,5 PM 4 VIE FILA SINGOLA NERO
| Code: | 42068400 |
| Total Number of Ways: | 4 |
| Kit Code: | 7625 |
| Type: | double row |
| Color: | black |
| Image: | C |
Possible to buy in kit version: 7625 - KIT FEP 1,5 PM 4 VIE NERO FILA DOPPIA
| Code: | 42072100 |
| Total Number of Ways: | 6 |
| Kit Code: | 7292 |
| Type: | double row |
| Color: | grey |
| Image: | D |
Possible to buy in kit version: 7292 - KIT 6 VIE PM FEP GRIGIO
4.169 Terminale Maschio FEP 1,5
4.170 Single Wire Seals
| Code: | 964972/1 |
| Wire Size Range (mm2): | 2,00 - 2,50 |
| Color: | yellow |
| Raw Material: | silicone |
| Ext. Diam.: | 3,9 |
| Contact Size: | 1,5 |
| Code: | 963530/1 |
| Wire Size Range (mm2): | 0,50 - 0,75 |
| Color: | grey |
| Raw Material: | silicone |
| Ext. Diam.: | 3,9 |
| Contact Size: | 1,5 |
| Code: | 963531/1 |
| Wire Size Range (mm2): | Plug |
| Color: | white |
| Raw Material: | silicone |
| Ext. Diam.: | 3,9 |
| Contact Size: | 1,5 |
Delivered with:
