Section n°4 - SEALED CONNECTORS & CONTACTS
Title: DEUTSCH HDP (SIZE 24) SERIE CONNECTORS AND CONTACTS
Section summary
4.91 DEUTSCH HDP (Size 12 + Size 16) SERIE Receptacle Housing
| Code | Total Number of Ways | Kit Code | Color | Raw Material | Contact Size | Gsket |
|---|---|---|---|---|---|---|
| HDP26-24-19SE | 19 | 7262 | black | PA 6.6 | 24 | extra subtle |
Possible to buy in kit version: 7262 - KIT CONNETTORE 19 VIE PF HDP | ||||||
4.91 DEUTSCH HDP (Size 12 + Size 16) SERIE Receptacle Housing
| Code: | HDP26-24-19SE |
| Total Number of Ways: | 19 |
| Kit Code: | 7262 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Contact Size: | 24 |
| Gsket: | extra subtle |
Possible to buy in kit version: 7262 - KIT CONNETTORE 19 VIE PF HDP
4.92 DEUTSCH HDP (Size 12 + Size 16) Tab Housing
| Code | Total Number of Ways | Kit Code | Color | Raw Material | Contact Size | Gsket |
|---|---|---|---|---|---|---|

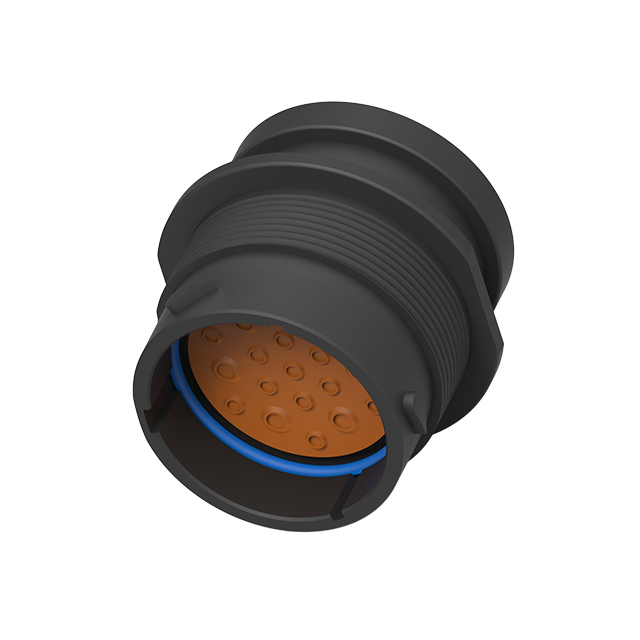

| HDP24-24-19PE | 19 | 7261 | black | PA 6.6 | 24 | extra subtle |
Possible to buy in kit version: 7261 - KIT CONNETTORE 19 VIE PM HDP | ||||||
| HDP24-24-21PE | 21 | 7652 | black | PA 6.6 | 24 | extra subtle |
Possible to buy in kit version: 7652 - KIT DA PANNELLO HDP 21 VIE PM | ||||||
4.92 DEUTSCH HDP (Size 12 + Size 16) Tab Housing
| Code: | HDP24-24-19PE |
| Total Number of Ways: | 19 |
| Kit Code: | 7261 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Contact Size: | 24 |
| Gsket: | extra subtle |
Possible to buy in kit version: 7261 - KIT CONNETTORE 19 VIE PM HDP
| Code: | HDP24-24-21PE |
| Total Number of Ways: | 21 |
| Kit Code: | 7652 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Contact Size: | 24 |
| Gsket: | extra subtle |
Possible to buy in kit version: 7652 - KIT DA PANNELLO HDP 21 VIE PM
4.93 DEUTSCH HDP (Size 12 + Size 16) Tab Housing
| Code | Total Number of Ways | Kit Code | Color | Raw Material | Contact Size | Gsket |
|---|---|---|---|---|---|---|
| HDP26-24-21PN | 21 | 7340 | black | PA 6.6 | 24 | normal |
Possible to buy in kit version: 7340 - KIT DEUTSCH HDP PM 21 VIE SIZE 24 | ||||||
4.93 DEUTSCH HDP (Size 12 + Size 16) Tab Housing
| Code: | HDP26-24-21PN |
| Total Number of Ways: | 21 |
| Kit Code: | 7340 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Contact Size: | 24 |
| Gsket: | normal |
Possible to buy in kit version: 7340 - KIT DEUTSCH HDP PM 21 VIE SIZE 24
4.94 DEUTSCH HDP Female Contact
4.95 Turned DEUTSCH HDP Receptacle Contact
| Code | Industrial Code | Wire Size Range (mm2) | Contact Size | Extraction Tool | Hand Tool | Notes |
|---|---|---|---|---|---|---|
| 4949 | 0462-201-16141 | 0,50 - 1,50 | 16 | 90016 | 3998 | turned |
4.95 Turned DEUTSCH HDP Receptacle Contact
| Code: | 4949 |
| Industrial Code: | 0462-201-16141 |
| Wire Size Range (mm2): | 0,50 - 1,50 |
| Contact Size: | 16 |
| Extraction Tool: | 90016 |
| Hand Tool: | 3998 |
| Notes: | turned |
4.96 DEUTSCH HDP Male Contact
| Code: | 4960 |
| Industrial Code: | 1060-16-0122 |
| Wire Size Range (mm2): | 0,75 - 2,00 |
| Contact Size: | 16 |
| Extraction Tool: | 24060 |
| Hand Tool: | 3991 + 3991/1 |
4.97 Turned DEUTSCH HDP Tab Contact
4.98 Metal Nut for DEUTSCH HDP Series Size 24
| Code: | 112263-90 |
| Raw Material: | metal |
| Width: | 47,63 |
| Depth: | 4,52 |
Delivered with:
