Section n°4 - SEALED CONNECTORS & CONTACTS
Title: DCS1 4,8 AND 9,5 CONNECTORS & CONTACTS
Section summary 4.472 DCSW1 4,8+9,5 Receptacle Housing
| Code | Total Number of Ways | Kit Code | Color | Raw Material |
|---|
| 7596 | 4 | 7596 | black | pbt |
|

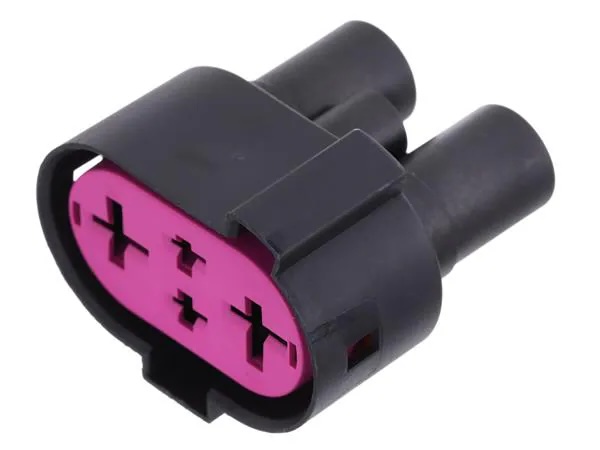

4.472 DCSW1 4,8+9,5 Receptacle Housing
| Code: | 7596 |
| Total Number of Ways: | 4 |
| Kit Code: | 7596 |
| Color: | black |
| Raw Material: | pbt |
4.473 DCS1 4,8+9,5 Tab Housing
| Code | Total Number of Ways | Kit Code | Color | Raw Material |
|---|
| 7597 | 4 | 7597 | black | pbt |
|

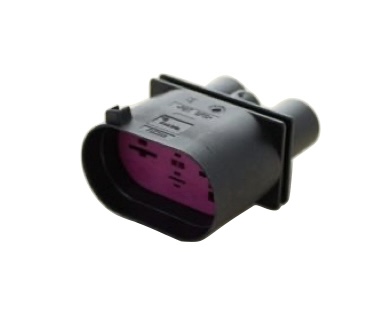

4.473 DCS1 4,8+9,5 Tab Housing
| Code: | 7597 |
| Total Number of Ways: | 4 |
| Kit Code: | 7597 |
| Color: | black |
| Raw Material: | pbt |
4.474 DCS1 4,8 Receptacle Contact
| Code | Industrial Code | Wire Size Range (mm2) | Raw Material | Extraction Tool | Hand Tool |
|---|
| 60040451 | 60040451 | 2,50 - 4,00 | tin-plated brass | 25030 | 3997 |
|
4.474 DCS1 4,8 Receptacle Contact
| Code: | 60040451 |
| Industrial Code: | 60040451 |
| Wire Size Range (mm2): | 2,50 - 4,00 |
| Raw Material: | tin-plated brass |
| Extraction Tool: | 25030 |
| Hand Tool: | 3997 |
4.475 DCS1 9,5 Receptacle Contact
| Code | Industrial Code | Wire Size Range (mm2) | Raw Material | Extraction Tool |
|---|
| 20313 | 60070471 | 6,00 - 10,00 | tin-plated brass | 25030 |
|
4.475 DCS1 9,5 Receptacle Contact
| Code: | 20313 |
| Industrial Code: | 60070471 |
| Wire Size Range (mm2): | 6,00 - 10,00 |
| Raw Material: | tin-plated brass |
| Extraction Tool: | 25030 |

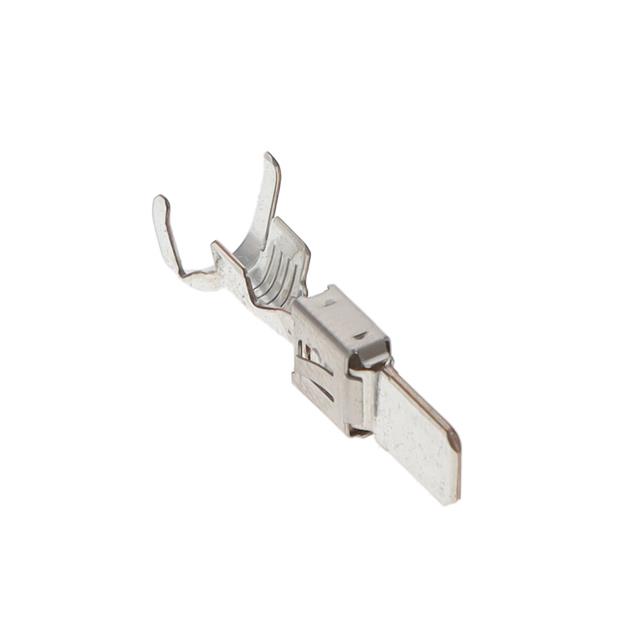

4.476 DCS1 4,8 Tab Contact
| Code | Wire Size Range (mm2) | Raw Material | Extraction Tool | Hand Tool |
|---|
| 964314/1 | 2,50 - 10,00 | tin-plated brass | 88040 | 3997 |
|
4.476 DCS1 4,8 Tab Contact
| Code: | 964314/1 |
| Wire Size Range (mm2): | 2,50 - 10,00 |
| Raw Material: | tin-plated brass |
| Extraction Tool: | 88040 |
| Hand Tool: | 3997 |
4.477 DCS1 9,5 Tab Contact
| Code | Wire Size Range (mm2) | Raw Material |
|---|
| 20382 | 6,00 - 10,00 | tin-plated brass |
|
4.477 DCS1 9,5 Tab Contact
| Code: | 20382 |
| Wire Size Range (mm2): | 6,00 - 10,00 |
| Raw Material: | tin-plated brass |
4.478 Single Wire Seal
| Code | Industrial Code | Wire Size Range (mm2) | Color | Raw Material | Ext. Diam. |
|---|
| 60992607 | - | 0,50 - 1,00 | green | silicone | 7,6 |
|
| 22110 | 654004 | 2,50 - 4,00 | red | silicone | 9 |
|
| 60993303 | - | 6,00 - 10,00 | red | - | 12,6 |
|
4.478 Single Wire Seal
| Code: | 60992607 |
| Industrial Code: | - |
| Wire Size Range (mm2): | 0,50 - 1,00 |
| Color: | green |
| Raw Material: | silicone |
| Ext. Diam.: | 7,6 |
| Code: | 22110 |
| Industrial Code: | 654004 |
| Wire Size Range (mm2): | 2,50 - 4,00 |
| Color: | red |
| Raw Material: | silicone |
| Ext. Diam.: | 9 |
| Code: | 60993303 |
| Industrial Code: | - |
| Wire Size Range (mm2): | 6,00 - 10,00 |
| Color: | red |
| Raw Material: | - |
| Ext. Diam.: | 12,6 |
Delivered with:
