Section n°4 - SEALED CONNECTORS & CONTACTS
Title: 196 WAYS BOSCH CONNECTORS & CONTACTS
Section summary 4.543 91 Ways Receptacle Housing
| Code | Total Number of Ways | Industrial Code | Kit Code | Color | Application |
|---|
| 6828 | 91 | 1928405452 | 6828 | black | vehicle side |
|
4.543 91 Ways Receptacle Housing
| Code: | 6828 |
| Total Number of Ways: | 91 |
| Industrial Code: | 1928405452 |
| Kit Code: | 6828 |
| Color: | black |
| Application: | vehicle side |

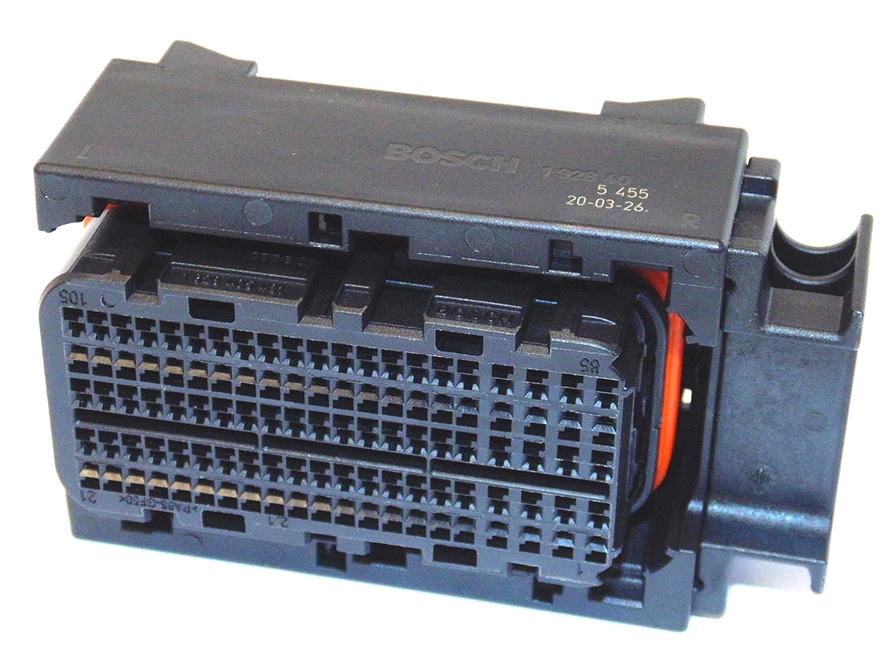

4.544 105 Ways Receptacle Housing
| Code | Total Number of Ways | Industrial Code | Kit Code | Color | Application |
|---|
| 6827 | 105 | 1928405455 | 6827 | black | engine side |
|
4.544 105 Ways Receptacle Housing
| Code: | 6827 |
| Total Number of Ways: | 105 |
| Industrial Code: | 1928405455 |
| Kit Code: | 6827 |
| Color: | black |
| Application: | engine side |
4.545 MATRIX 1,2 Tab Contact
4.545 MATRIX 1,2 Tab Contact
| Code: | 8991 |
| Wire Size Range (mm2): | 0,35 - 0,50 |
| Raw Material: | Bz Ph Sn |
| Extraction Tool: | 25046 |
| Hand Tool: | 3995 |
| Code: | 8992 |
| Wire Size Range (mm2): | 0,75 - 1,00 |
| Raw Material: | Bz Ph Sn |
| Extraction Tool: | 25046 |
| Hand Tool: | 3995 |
4.546 BTL 2,8 Receptacle Contact
| Code | Wire Size Range (mm2) | Raw Material | Extraction Tool | Hand Tool |
|---|
| 8651 | 1,50 - 2,50 | Bz Ph Sn | 99014 | 3976 + 3982 |
|
4.546 BTL 2,8 Receptacle Contact
| Code: | 8651 |
| Wire Size Range (mm2): | 1,50 - 2,50 |
| Raw Material: | Bz Ph Sn |
| Extraction Tool: | 99014 |
| Hand Tool: | 3976 + 3982 |
4.547 Single Wire Seal
| Code | Wire Size Range (mm2) | Color | Raw Material | Ext. Diam. | Contact Size |
|---|
| 828904/1 | 1,00 - 2,00 | blue | silicone | 5,6 | 1,5 |
|
4.547 Single Wire Seal
| Code: | 828904/1 |
| Wire Size Range (mm2): | 1,00 - 2,00 |
| Color: | blue |
| Raw Material: | silicone |
| Ext. Diam.: | 5,6 |
| Contact Size: | 1,5 |
Delivered with:
