5.14 ATO Blade Fuses
NOTE: available ATO blade fuses kit mix code 3302| Code | Industrial Code | Color | Width | Height | Ampere | Resistor | Voltage Drop |
|---|---|---|---|---|---|---|---|
| 2845 | 287001 | black | 19,1 | 18,8 | 1 | 123 | 176 |
| 2846 | 287002 | grey | 19,1 | 18,8 | 2 | 50 | 141 |
| 2850 | 287003 | violet | 19,1 | 18,8 | 3 | 31 | 137 |
| 2851 | 287004 | pink | 19,1 | 18,8 | 4 | 23 | 136 |
| 2852 | 287005 | beige | 19,1 | 18,8 | 5 | 18 | 128 |
| 2853 | 287075 | brown | 19,1 | 18,8 | 7,5 | 11 | 116 |
| 2854 | 287010 | red | 19,1 | 18,8 | 10 | 7,7 | 109 |
| 2855 | 287015 | blue | 19,1 | 18,8 | 15 | 4,8 | 102 |
| 2856 | 287020 | yellow | 19,1 | 18,8 | 20 | 3,3 | 98 |
| 2857 | 287025 | white | 19,1 | 18,8 | 25 | 2,5 | 92 |
| 2858 | 287030 | green | 19,1 | 18,8 | 30 | 1,9 | 84 |
| 2843 | 287035 | green blue | 19,1 | 18,8 | 35 | 1,6 | 87 |
| 2844 | 287040 | orange | 19,1 | 18,8 | 40 | 1,4 | 96 |
5.14 ATO Blade Fuses
| Code: | 2845 |
| Industrial Code: | 287001 |
| Color: | black |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 1 |
| Resistor: | 123 |
| Voltage Drop: | 176 |
| Code: | 2846 |
| Industrial Code: | 287002 |
| Color: | grey |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 2 |
| Resistor: | 50 |
| Voltage Drop: | 141 |
| Code: | 2850 |
| Industrial Code: | 287003 |
| Color: | violet |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 3 |
| Resistor: | 31 |
| Voltage Drop: | 137 |
| Code: | 2851 |
| Industrial Code: | 287004 |
| Color: | pink |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 4 |
| Resistor: | 23 |
| Voltage Drop: | 136 |
| Code: | 2852 |
| Industrial Code: | 287005 |
| Color: | beige |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 5 |
| Resistor: | 18 |
| Voltage Drop: | 128 |
| Code: | 2853 |
| Industrial Code: | 287075 |
| Color: | brown |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 7,5 |
| Resistor: | 11 |
| Voltage Drop: | 116 |
| Code: | 2854 |
| Industrial Code: | 287010 |
| Color: | red |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 10 |
| Resistor: | 7,7 |
| Voltage Drop: | 109 |
| Code: | 2855 |
| Industrial Code: | 287015 |
| Color: | blue |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 15 |
| Resistor: | 4,8 |
| Voltage Drop: | 102 |
| Code: | 2856 |
| Industrial Code: | 287020 |
| Color: | yellow |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 20 |
| Resistor: | 3,3 |
| Voltage Drop: | 98 |
| Code: | 2857 |
| Industrial Code: | 287025 |
| Color: | white |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 25 |
| Resistor: | 2,5 |
| Voltage Drop: | 92 |
| Code: | 2858 |
| Industrial Code: | 287030 |
| Color: | green |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 30 |
| Resistor: | 1,9 |
| Voltage Drop: | 84 |
| Code: | 2843 |
| Industrial Code: | 287035 |
| Color: | green blue |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 35 |
| Resistor: | 1,6 |
| Voltage Drop: | 87 |
| Code: | 2844 |
| Industrial Code: | 287040 |
| Color: | orange |
| Width: | 19,1 |
| Height: | 18,8 |
| Ampere: | 40 |
| Resistor: | 1,4 |
| Voltage Drop: | 96 |
5.15 ATO Low Voltage Fuses
| Code: | F1805 |
| Color: | beige |
| Width: | 19 |
| Height: | 20 |
| Ampere: | 5 |
| Resistor: | 80 |

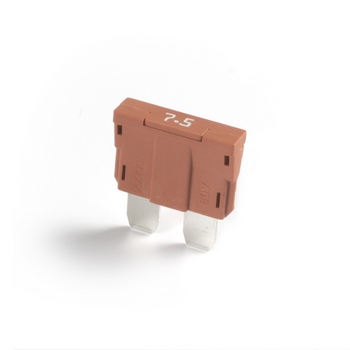

| Code: | F1875 |
| Color: | brown |
| Width: | 19 |
| Height: | 20 |
| Ampere: | 7,5 |
| Resistor: | 80 |
| Code: | F1810 |
| Color: | red |
| Width: | 19 |
| Height: | 20 |
| Ampere: | 10 |
| Resistor: | 80 |
| Code: | F1815 |
| Color: | blue |
| Width: | 19 |
| Height: | 20 |
| Ampere: | 15 |
| Resistor: | 80 |

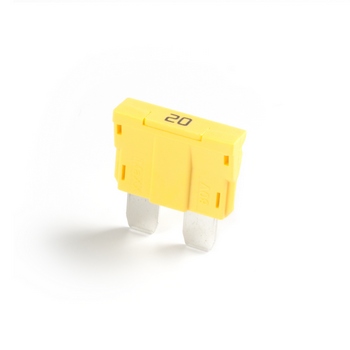

| Code: | F1820 |
| Color: | yellow |
| Width: | 19 |
| Height: | 20 |
| Ampere: | 20 |
| Resistor: | 80 |

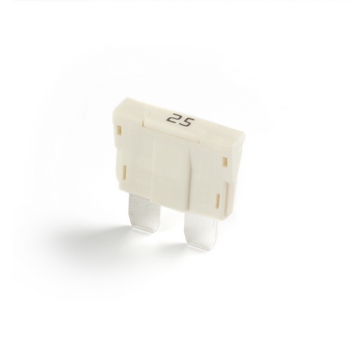

| Code: | F1825 |
| Color: | white,red |
| Width: | 19 |
| Height: | 20 |
| Ampere: | 25 |
| Resistor: | 80 |
| Code: | F1830 |
| Color: | green |
| Width: | 19 |
| Height: | 20 |
| Ampere: | 30 |
| Resistor: | 80 |

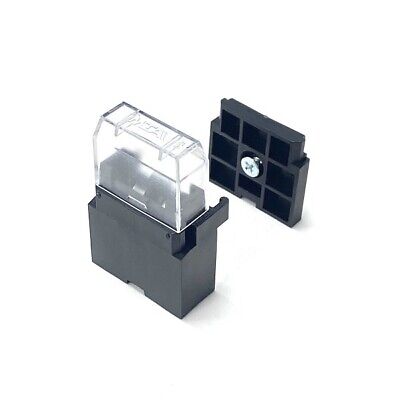

5.16 ATO vertical contact for modular Fuse Holder
| Code: | 946/2 |
| Type: | modular |
| Color: | black |
| Accessory Contacts: | 181904/1 |
| Fuse Holder: | G |
5.17 ATO Blade Fuse holders 1 Position with 2 Contacts
NOTE: the contacts are inside the kit 6353.| Code | Kit Code | Type | Accessory Contacts | Fuse Holder |
|---|---|---|---|---|
| 500016 | 6353 | modular | 91001 (1,50-2,50 mmq) | K |
Possible to buy in kit version: 6353 - KIT CONNETTORE PORTAFUSIBILE | ||||
5.17 ATO Blade Fuse holders 1 Position with 2 Contacts
| Code: | 500016 |
| Kit Code: | 6353 |
| Type: | modular |
| Accessory Contacts: | 91001 (1,50-2,50 mmq) |
| Fuse Holder: | K |
Possible to buy in kit version: 6353 - KIT CONNETTORE PORTAFUSIBILE
5.18 ATO Blade Fuse holder
| Code: | 9525 |
| Type: | modular |
| Color: | black |
| Accessory Contacts: | 181904/1 |
| Fuse Holder: | H |
5.19 ATO Blade Fuse holders 1 Position
| Code: | 281990/2 |
| Type: | modular |
| Ampere: | 16 |
| Accessory Contacts: | 5186 |
| Fuse Holder: | I |
5.20 ATO Blade Fuse holders White
| Code: | 282159/1 |
| Type: | modular |
| Ampere: | 30 |
| Accessory Contacts: | 927825/1 and 963714/1 |
| Fuse Holder: | J |
5.21 Flush-mounted ATO fuse holder
| Code: | 92017 |
| Total Number of Ways: | 1 |
| Industrial Code: | 0300331 |
| Color: | black |
| Raw Material: | PA66 GF25 |
| Accessory Contacts: | 5607 |
| Fuse Holder: | ZG |
5.22 Sealed Fuse Holder
5.23 ATO modular sealed fuse holder with crimping contact
APPLICATION: engine dept.| Code | Kit Code | Accessory Contacts | Fuse Holder |
|---|---|---|---|
| 012/3203/00 | 6969 | 011/3201/00 + single wire seal | O |
Possible to buy in kit version: 6969 - KIT PORTAFUSIBILE STAGNO | |||
5.23 ATO modular sealed fuse holder with crimping contact
| Code: | 012/3203/00 |
| Kit Code: | 6969 |
| Accessory Contacts: | 011/3201/00 + single wire seal |
| Fuse Holder: | O |
Possible to buy in kit version: 6969 - KIT PORTAFUSIBILE STAGNO
5.24 ATO Blade Fuse holder sealed
| Code: | 2847 |
| Type: | sealed |
| Wire Size Range (mm2): | 1,5 |
| Color: | black |
| Notes: | Cable length 10 + 10 cm |
| Fuse Holder: | P |
| Code: | 445009 |
| Type: | sealed |
| Wire Size Range (mm2): | 2,5 |
| Color: | orange |
| Notes: | Cable length 10 + 10 cm |
| Fuse Holder: | P |
5.25 ATO Blade Fuse holder
| Code: | 2982 |
| Type: | shunting |
| Wire Size Range (mm2): | 1,5 |
| Color: | black |
| Notes: | Cable length 12 cm |
| Fuse Holder: | M |
5.26 Sealed Blade Fuse holders 2 Positions
| Code: | 61006 |
| Type: | sealed |
| Color: | black |
| Height: | 46,5 |
| Notes: | 2 positions 2 positions |
| Fuse Holder: | R |
5.27 ATO Blade Fuse holders 4 Positions
NOTE: the contacts are inside the kit 6796.| Code | Total Number of Ways | Kit Code | Wire Size Range (mm2) | Accessory Contacts | Fuse Holder |
|---|---|---|---|---|---|
| 17941000000 | 4 | 6796 | 1,50 - 2,50 | 20560 | N |
Possible to buy in kit version: 6796 - KIT PORTAFUSIBILE | |||||
5.27 ATO Blade Fuse holders 4 Positions
| Code: | 17941000000 |
| Total Number of Ways: | 4 |
| Kit Code: | 6796 |
| Wire Size Range (mm2): | 1,50 - 2,50 |
| Accessory Contacts: | 20560 |
| Fuse Holder: | N |
Possible to buy in kit version: 6796 - KIT PORTAFUSIBILE
5.28 Sealed Blade Fuse holders 4 Positions
| Code: | 61007 |
| Type: | sealed |
| Color: | black |
| Height: | 46,5 |
| Notes: | 4 positions |
| Fuse Holder: | S |
5.29 Sealed Blade Fuse holders 6 Positions
| Code: | 61008 |
| Type: | sealed |
| Color: | black |
| Height: | 46,5 |
| Notes: | 6 positions |
| Fuse Holder: | V |
5.30 6 Way Watertight Fuse Holder with Side Exit
| Code: | 92018 |
| Total Number of Ways: | 6 |
| Industrial Code: | 0300600 |
| Color: | black |
| Raw Material: | PA66 GF30 |
| Fuse Holder: | ZH |
5.31 ATO Blade Fuse holders 8 Positions
| Code: | 67111 |
| Total Number of Ways: | 8 |
| Type: | sealed |
| Wire Size Range (mm2): | 1,00 - 2,50 |
| Accessory Contacts: | 42238/2 |
| Fuse Holder: | Q |
5.32 16 Way ATO Fuse Holder
| Code: | 92019 |
| Total Number of Ways: | 16 |
| Industrial Code: | 0300650 |
| Color: | black |
| Raw Material: | PA66 GF25 |
| Accessory Contacts: | 5607 |
| Fuse Holder: | ZI |
5.33 Fuses Bracket
| Code: | 430 |
| Color: | black |
5.34 Double Screw Fixing Bracket
| Code: | 434 |
| Industrial Code: | 0100440 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Screw Hole: | M5 |
Delivered with:
