6.1 12V 280 Ultra Micro Relay
| Code: | 13748475 |
| Volt: | 12 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C2 |
| N.O.: | 20 |
| Total Relays Contacts: | 4 |
6.2 12V 280 Micro Relays
| Code: | 13748474 |
| Volt: | 12 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C2 |
| N.O.: | 30 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Code: | 13814412 |
| Volt: | 12 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C5 |
| N.O.: | 20 |
| N.C.: | 10 |
| Total Relays Contacts: | 5 |
6.3 12V Micro Relays
DIMENSIONS: 26 x 15 x 23 mm| Code | Volt | Diode or Resistor | Relay Electrical Diagram | N.O. | N.C. | Total Relays Contacts | Relay contacts 4.8 | Relay Contacts 6.3 | Relay Socket |
|---|---|---|---|---|---|---|---|---|---|
| 201005 | 12 | resistor | C5 | 20 | 10 | 5 | 3 | 2 | A, B, C, D |
| 201006 | 12 | resistor | C2 | 20 | - | 4 | 2 | 2 | A, B, C, D |
| 201145 | 12 | diode | C6 | 25 | 15 | 5 | 3 | 2 | A, B, C, D |
| 201045 | 12 | diode | C3 | 25 | - | 4 | 2 | 2 | A, B, C, D |
| 201075 | 12 | resistor | C2 | 30 | - | 4 | 2 | 2 | A, B, C, D |
6.3 12V Micro Relays
| Code: | 201005 |
| Volt: | 12 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C5 |
| N.O.: | 20 |
| N.C.: | 10 |
| Total Relays Contacts: | 5 |
| Relay contacts 4.8: | 3 |
| Relay Contacts 6.3: | 2 |
| Relay Socket: | A, B, C, D |
| Code: | 201006 |
| Volt: | 12 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C2 |
| N.O.: | 20 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay contacts 4.8: | 2 |
| Relay Contacts 6.3: | 2 |
| Relay Socket: | A, B, C, D |
| Code: | 201145 |
| Volt: | 12 |
| Diode or Resistor: | diode |
| Relay Electrical Diagram: | C6 |
| N.O.: | 25 |
| N.C.: | 15 |
| Total Relays Contacts: | 5 |
| Relay contacts 4.8: | 3 |
| Relay Contacts 6.3: | 2 |
| Relay Socket: | A, B, C, D |
| Code: | 201045 |
| Volt: | 12 |
| Diode or Resistor: | diode |
| Relay Electrical Diagram: | C3 |
| N.O.: | 25 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay contacts 4.8: | 2 |
| Relay Contacts 6.3: | 2 |
| Relay Socket: | A, B, C, D |
| Code: | 201075 |
| Volt: | 12 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C2 |
| N.O.: | 30 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay contacts 4.8: | 2 |
| Relay Contacts 6.3: | 2 |
| Relay Socket: | A, B, C, D |
6.4 12V Mini Relays
DIMENSIONS: 25 x 25 x 21,5 mm.| Code | Kit Code | Volt | Diode or Resistor | Relay Electrical Diagram | N.O. | N.C. | Total Relays Contacts | Relay Contacts 6.3 | Relay Bracket | Relay Socket |
|---|---|---|---|---|---|---|---|---|---|---|
| 200300 | - | 12 | - | C1 | 30 | - | 4 | 4 | removable | E, F, G, K, L |
| 210003 | - | 12 | diode | C8 | 30 | - | 5 | 5 | removable | E, F, G, K, L |
| 210007 | 3310 | 12 | - | C9 | 40 | - | 5 | 5 | removable | E, F, G, K, L |
Possible to buy in kit version: 3310 - KIT RELAYS 12V 40A | ||||||||||
| 210064 | 3311 | 12 | resistor | C5 | 40 | 30 | 5 | 5 | no | E, F, G, K, L |
Possible to buy in kit version: 3311 - KIT MINI RELAYS 12V 30/40A | ||||||||||
| 210101 | - | 12 | resistor | C5 | 40 | 30 | 5 | 5 | removable | E, F, G, K, L |
| 210301 | - | 12 | diode | C6 | 40 | 30 | 5 | 5 | removable | E, F, G, K, L |
| 210001 | - | 12 | resistor | C7 | 40 | - | 5 | 5 | yes | E, F, G, K, L |
| 210201 | - | 12 | - | C4 | 40 | 30 | 5 | 5 | removable | E, F, G, K, L |
| 212300 | - | 12 | - | C11 | 25 + 25 | - | 5 | 5 | removable | E, F, G, K, L |
6.4 12V Mini Relays
| Code: | 200300 |
| Kit Code: | - |
| Volt: | 12 |
| Diode or Resistor: | - |
| Relay Electrical Diagram: | C1 |
| N.O.: | 30 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 4 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
| Code: | 210003 |
| Kit Code: | - |
| Volt: | 12 |
| Diode or Resistor: | diode |
| Relay Electrical Diagram: | C8 |
| N.O.: | 30 |
| N.C.: | - |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
| Code: | 210007 |
| Kit Code: | 3310 |
| Volt: | 12 |
| Diode or Resistor: | - |
| Relay Electrical Diagram: | C9 |
| N.O.: | 40 |
| N.C.: | - |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
Possible to buy in kit version: 3310 - KIT RELAYS 12V 40A
| Code: | 210064 |
| Kit Code: | 3311 |
| Volt: | 12 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C5 |
| N.O.: | 40 |
| N.C.: | 30 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | no |
| Relay Socket: | E, F, G, K, L |
Possible to buy in kit version: 3311 - KIT MINI RELAYS 12V 30/40A
| Code: | 210101 |
| Kit Code: | - |
| Volt: | 12 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C5 |
| N.O.: | 40 |
| N.C.: | 30 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
| Code: | 210301 |
| Kit Code: | - |
| Volt: | 12 |
| Diode or Resistor: | diode |
| Relay Electrical Diagram: | C6 |
| N.O.: | 40 |
| N.C.: | 30 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
| Code: | 210001 |
| Kit Code: | - |
| Volt: | 12 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C7 |
| N.O.: | 40 |
| N.C.: | - |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | yes |
| Relay Socket: | E, F, G, K, L |
| Code: | 210201 |
| Kit Code: | - |
| Volt: | 12 |
| Diode or Resistor: | - |
| Relay Electrical Diagram: | C4 |
| N.O.: | 40 |
| N.C.: | 30 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
| Code: | 212300 |
| Kit Code: | - |
| Volt: | 12 |
| Diode or Resistor: | - |
| Relay Electrical Diagram: | C11 |
| N.O.: | 25 + 25 |
| N.C.: | - |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
6.5 12V Relay with Fuse
| Code | Kit Code | Volt | Relay Electrical Diagram | N.O. | Total Relays Contacts | Relay Contacts 6.3 | Relay Bracket | Relay Socket |
|---|---|---|---|---|---|---|---|---|
| 1609/30 | 3315 | 12 | C1 | 30 | 4 | 4 | removable | E, F, G, K, L |
Possible to buy in kit version: 3315 - KIT MINI RELAYS CON FUSIBILE | ||||||||
6.5 12V Relay with Fuse
| Code: | 1609/30 |
| Kit Code: | 3315 |
| Volt: | 12 |
| Relay Electrical Diagram: | C1 |
| N.O.: | 30 |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 4 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
Possible to buy in kit version: 3315 - KIT MINI RELAYS CON FUSIBILE
6.6 12V Timed Relay
NOTE: Multitimer is a timed relay used to switch the user component ON-OFF after a delay time selectable througt of 2 selectors on the cover. The delay it's programmable from 0.5 sec up to 6 h. The timed relay can be activated througt a pulse and can be triggered by switch or push button.| Code | Volt | Relay Electrical Diagram | N.O. | Total Relays Contacts | Relay Contacts 6.3 | Notes | Relay Socket |
|---|---|---|---|---|---|---|---|
| 40205 | 12 | C12 | 10 | 5 | 5 | programmable time 0.5 sec. - 6h | E, F, G, K, L |
6.6 12V Timed Relay
| Code: | 40205 |
| Volt: | 12 |
| Relay Electrical Diagram: | C12 |
| N.O.: | 10 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Notes: | programmable time 0.5 sec. - 6h |
| Relay Socket: | E, F, G, K, L |
6.7 12V Relays
Code 231180: relays layout contacts 30-87= 6mA| Code | Kit Code | Volt | Diode or Resistor | Relay Electrical Diagram | N.O. | N.C. | Total Relays Contacts | Relay Contacts 6.3 | Relay contacts 9.5 | Relay Bracket | Relay Socket |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 211516 | - | 12 | resistor | C2 | 50 | - | 4 | 2 | 2 | removable | H, I |
| 211100 | 3320 | 12 | - | C1 | 70 | - | 4 | 2 | 2 | removable | H, I |
Possible to buy in kit version: 3320 - KIT RELAYS 70A. | |||||||||||
| 211692 | - | 12 | resistor | C2 | 70 | - | 4 | 2 | 2 | no | H, I |
| 270240 | - | 12 | - | C4 | 70 | 40 | 5 | 2 | 3 | removable | N |
| 211384 | - | 12 | - | C1 | 80 | - | 4 | 2 | 2 | yes | H, I |
| 231180 | - | 12 | - | C1 | 200 | - | 4 | 2 | - | yes | - |
| 210110 | 3336 | 12 | resistor | C5 | 100 | 80 | 5 | 2 | 3 | no | N |
Possible to buy in kit version: 3336 - KIT RELE' DI SCAMBIO 12V 80/100A | |||||||||||
6.7 12V Relays
| Code: | 211516 |
| Kit Code: | - |
| Volt: | 12 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C2 |
| N.O.: | 50 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 2 |
| Relay contacts 9.5: | 2 |
| Relay Bracket: | removable |
| Relay Socket: | H, I |
| Code: | 211100 |
| Kit Code: | 3320 |
| Volt: | 12 |
| Diode or Resistor: | - |
| Relay Electrical Diagram: | C1 |
| N.O.: | 70 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 2 |
| Relay contacts 9.5: | 2 |
| Relay Bracket: | removable |
| Relay Socket: | H, I |
Possible to buy in kit version: 3320 - KIT RELAYS 70A.
| Code: | 211692 |
| Kit Code: | - |
| Volt: | 12 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C2 |
| N.O.: | 70 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 2 |
| Relay contacts 9.5: | 2 |
| Relay Bracket: | no |
| Relay Socket: | H, I |
| Code: | 270240 |
| Kit Code: | - |
| Volt: | 12 |
| Diode or Resistor: | - |
| Relay Electrical Diagram: | C4 |
| N.O.: | 70 |
| N.C.: | 40 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 2 |
| Relay contacts 9.5: | 3 |
| Relay Bracket: | removable |
| Relay Socket: | N |
| Code: | 211384 |
| Kit Code: | - |
| Volt: | 12 |
| Diode or Resistor: | - |
| Relay Electrical Diagram: | C1 |
| N.O.: | 80 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 2 |
| Relay contacts 9.5: | 2 |
| Relay Bracket: | yes |
| Relay Socket: | H, I |
| Code: | 231180 |
| Kit Code: | - |
| Volt: | 12 |
| Diode or Resistor: | - |
| Relay Electrical Diagram: | C1 |
| N.O.: | 200 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 2 |
| Relay contacts 9.5: | - |
| Relay Bracket: | yes |
| Relay Socket: | - |
| Code: | 210110 |
| Kit Code: | 3336 |
| Volt: | 12 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C5 |
| N.O.: | 100 |
| N.C.: | 80 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 2 |
| Relay contacts 9.5: | 3 |
| Relay Bracket: | no |
| Relay Socket: | N |
Possible to buy in kit version: 3336 - KIT RELE' DI SCAMBIO 12V 80/100A
6.8 12V Flip Flop Relays
| Code: | 700326 |
| Volt: | 12 |
| Polarisation: | + |
| N.O.: | 25 |
| N.C.: | 20 |
| Relay Bracket: | removable |
| Relay Socket: | E |
| Code: | 700418 |
| Volt: | 12 |
| Polarisation: | - |
| N.O.: | 25 |
| N.C.: | 20 |
| Relay Bracket: | removable |
| Relay Socket: | E |
6.9 12V Relay Sealed
The KIT included Sealed Relay Socket| Code | Kit Code | Volt | Relay Electrical Diagram | N.O. | N.C. | Relay Contacts 6.3 | Relay Bracket | Relay Socket |
|---|---|---|---|---|---|---|---|---|
| 1/1393298/3 | 6766 | 12 | C4 | 40 | 30 | 5 | removable | M |
Possible to buy in kit version: 6766 - KIT connettore portarele stagno | ||||||||
6.9 12V Relay Sealed
| Code: | 1/1393298/3 |
| Kit Code: | 6766 |
| Volt: | 12 |
| Relay Electrical Diagram: | C4 |
| N.O.: | 40 |
| N.C.: | 30 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | removable |
| Relay Socket: | M |
Possible to buy in kit version: 6766 - KIT connettore portarele stagno
6.10 THRESHOLD RELAY 12V
| Code: | 2140-N01 |
| Volt: | 12 |
| Ampere: | 140 |
| Notes: | 12,65V - 13,3V |
6.11 24V Micro Relays
DIMENSIONS: 26 x 15 x 23 mm| Code | Volt | Diode or Resistor | Relay Electrical Diagram | N.O. | N.C. | Total Relays Contacts | Relay contacts 4.8 | Relay Contacts 6.3 | Relay Socket |
|---|---|---|---|---|---|---|---|---|---|
| 401007 | 24 | diode | C3 | 10 | - | 4 | 2 | 2 | A, B, C, D |
| 401009 | 24 | diode | C6 | 15 | 10 | 5 | 3 | 2 | A, B, C, D |
| 401005 | 24 | resistor | C2 | 15 | - | 4 | 2 | 2 | A, B, C, D |
| 401008 | 24 | resistor | C5 | 20 | 10 | 5 | 3 | 2 | A, B, C, D |
6.11 24V Micro Relays
| Code: | 401007 |
| Volt: | 24 |
| Diode or Resistor: | diode |
| Relay Electrical Diagram: | C3 |
| N.O.: | 10 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay contacts 4.8: | 2 |
| Relay Contacts 6.3: | 2 |
| Relay Socket: | A, B, C, D |
| Code: | 401009 |
| Volt: | 24 |
| Diode or Resistor: | diode |
| Relay Electrical Diagram: | C6 |
| N.O.: | 15 |
| N.C.: | 10 |
| Total Relays Contacts: | 5 |
| Relay contacts 4.8: | 3 |
| Relay Contacts 6.3: | 2 |
| Relay Socket: | A, B, C, D |
| Code: | 401005 |
| Volt: | 24 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C2 |
| N.O.: | 15 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay contacts 4.8: | 2 |
| Relay Contacts 6.3: | 2 |
| Relay Socket: | A, B, C, D |
| Code: | 401008 |
| Volt: | 24 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C5 |
| N.O.: | 20 |
| N.C.: | 10 |
| Total Relays Contacts: | 5 |
| Relay contacts 4.8: | 3 |
| Relay Contacts 6.3: | 2 |
| Relay Socket: | A, B, C, D |
6.12 24V Mini Relays
| Code | Kit Code | Volt | Diode or Resistor | Relay Electrical Diagram | N.O. | N.C. | Total Relays Contacts | Relay Contacts 6.3 | Relay Bracket | Relay Socket |
|---|---|---|---|---|---|---|---|---|---|---|
| 214300 | - | 24 | - | C11 | 10 + 10 | - | 5 | 5 | removable | E, F, G, K, L |
| 1/1414315/0 | - | 24 | resistor | C5 | 60 | 40 | 5 | 5 | no | E, K, L |
| 410007 | - | 24 | - | C9 | 20 | - | 5 | 5 | removable | E, F, G, K, L |
| 410008 | - | 24 | diode | C8 | 20 | - | 5 | 5 | removable | E, F, G, K, L |
| 410201 | 3325 | 24 | - | C4 | 20 | 10 | 5 | 5 | no | E, F, G, K, L |
Possible to buy in kit version: 3325 - KIT RELAYS 24V 10/20A | ||||||||||
| 410202 | - | 24 | resistor | C5 | 20 | 10 | 5 | 5 | removable | E, F, G, K, L |
| 410203 | - | 24 | diode | C6 | 20 | 10 | 5 | 5 | removable | E, F, G, K, L |
| 411698 | - | 24 | - | C1 | 40 | - | 4 | 4 | no | E, F, G, K, L |
6.12 24V Mini Relays
| Code: | 214300 |
| Kit Code: | - |
| Volt: | 24 |
| Diode or Resistor: | - |
| Relay Electrical Diagram: | C11 |
| N.O.: | 10 + 10 |
| N.C.: | - |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
| Code: | 1/1414315/0 |
| Kit Code: | - |
| Volt: | 24 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C5 |
| N.O.: | 60 |
| N.C.: | 40 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | no |
| Relay Socket: | E, K, L |
| Code: | 410007 |
| Kit Code: | - |
| Volt: | 24 |
| Diode or Resistor: | - |
| Relay Electrical Diagram: | C9 |
| N.O.: | 20 |
| N.C.: | - |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
| Code: | 410008 |
| Kit Code: | - |
| Volt: | 24 |
| Diode or Resistor: | diode |
| Relay Electrical Diagram: | C8 |
| N.O.: | 20 |
| N.C.: | - |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
| Code: | 410201 |
| Kit Code: | 3325 |
| Volt: | 24 |
| Diode or Resistor: | - |
| Relay Electrical Diagram: | C4 |
| N.O.: | 20 |
| N.C.: | 10 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | no |
| Relay Socket: | E, F, G, K, L |
Possible to buy in kit version: 3325 - KIT RELAYS 24V 10/20A

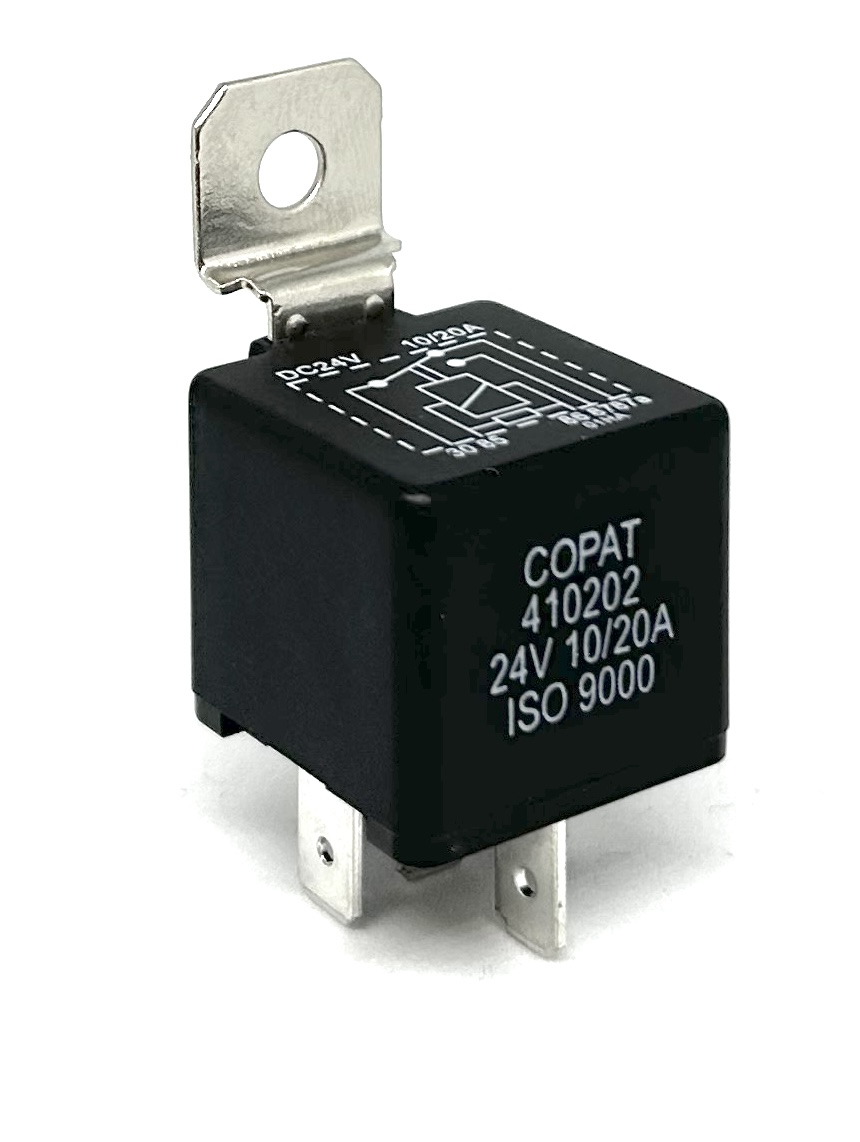

| Code: | 410202 |
| Kit Code: | - |
| Volt: | 24 |
| Diode or Resistor: | resistor |
| Relay Electrical Diagram: | C5 |
| N.O.: | 20 |
| N.C.: | 10 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
| Code: | 410203 |
| Kit Code: | - |
| Volt: | 24 |
| Diode or Resistor: | diode |
| Relay Electrical Diagram: | C6 |
| N.O.: | 20 |
| N.C.: | 10 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Relay Bracket: | removable |
| Relay Socket: | E, F, G, K, L |
| Code: | 411698 |
| Kit Code: | - |
| Volt: | 24 |
| Diode or Resistor: | - |
| Relay Electrical Diagram: | C1 |
| N.O.: | 40 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 4 |
| Relay Bracket: | no |
| Relay Socket: | E, F, G, K, L |
6.13 24V Relay with Fuse
| Code | Kit Code | Volt | Relay Electrical Diagram | N.O. | Total Relays Contacts | Relay Contacts 6.3 | Relay Bracket |
|---|---|---|---|---|---|---|---|
| 410200 | 3330 | 24 | C1 | 15 | 4 | 4 | removable |
Possible to buy in kit version: 3330 - KIT RELAYS CON FUS.15A 24V | |||||||
6.13 24V Relay with Fuse
| Code: | 410200 |
| Kit Code: | 3330 |
| Volt: | 24 |
| Relay Electrical Diagram: | C1 |
| N.O.: | 15 |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 4 |
| Relay Bracket: | removable |
Possible to buy in kit version: 3330 - KIT RELAYS CON FUS.15A 24V
6.14 24V Relays
Relay 440080: 2 contacts 30/87= 6mA| Code | Kit Code | Volt | Relay Electrical Diagram | N.O. | N.C. | Total Relays Contacts | Relay Contacts 6.3 | Relay contacts 9.5 | Relay Bracket | Relay Socket |
|---|---|---|---|---|---|---|---|---|---|---|
| 411100 | 3335 | 24 | C1 | 40 | - | 4 | 2 | 2 | removable | H, I |
Possible to buy in kit version: 3335 - KIT RELAYS DI POTENZA 24V 40A. | ||||||||||
| 440081 | - | 24 | C1 | 100 | - | 4 | 2 | - | yes | - |
| 411394 | - | 24 | C1 | 50 | - | 4 | 2 | 2 | - | H, I |
| 440430 | - | 24 | C4 | 50 | 40 | 5 | 2 | 3 | - | N |
| 470070 | - | 24 | C1 | 70 | - | 4 | 2 | 2 | removable | H, I |
6.14 24V Relays
| Code: | 411100 |
| Kit Code: | 3335 |
| Volt: | 24 |
| Relay Electrical Diagram: | C1 |
| N.O.: | 40 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 2 |
| Relay contacts 9.5: | 2 |
| Relay Bracket: | removable |
| Relay Socket: | H, I |
Possible to buy in kit version: 3335 - KIT RELAYS DI POTENZA 24V 40A.
| Code: | 440081 |
| Kit Code: | - |
| Volt: | 24 |
| Relay Electrical Diagram: | C1 |
| N.O.: | 100 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 2 |
| Relay contacts 9.5: | - |
| Relay Bracket: | yes |
| Relay Socket: | - |
| Code: | 411394 |
| Kit Code: | - |
| Volt: | 24 |
| Relay Electrical Diagram: | C1 |
| N.O.: | 50 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 2 |
| Relay contacts 9.5: | 2 |
| Relay Bracket: | - |
| Relay Socket: | H, I |
| Code: | 440430 |
| Kit Code: | - |
| Volt: | 24 |
| Relay Electrical Diagram: | C4 |
| N.O.: | 50 |
| N.C.: | 40 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 2 |
| Relay contacts 9.5: | 3 |
| Relay Bracket: | - |
| Relay Socket: | N |
| Code: | 470070 |
| Kit Code: | - |
| Volt: | 24 |
| Relay Electrical Diagram: | C1 |
| N.O.: | 70 |
| N.C.: | - |
| Total Relays Contacts: | 4 |
| Relay Contacts 6.3: | 2 |
| Relay contacts 9.5: | 2 |
| Relay Bracket: | removable |
| Relay Socket: | H, I |
6.15 24V Flip Flop Relays
| Code: | 700306 |
| Volt: | 24 |
| Polarisation: | + |
| N.O.: | 15 |
| N.C.: | 10 |
| Relay Bracket: | removable |
| Relay Socket: | E |
| Code: | 700419 |
| Volt: | 24 |
| Polarisation: | - |
| N.O.: | 15 |
| N.C.: | 10 |
| Relay Bracket: | removable |
| Relay Socket: | E |
6.16 24V Timing Relay
NOTE: Multitimer is a timed relay used to switch the user component ON-OFF after a delay time selectable througt of 2 selectors on the cover. The delay it's programmable from 0.5 sec up to 6 h. The timed relay can be activated througt a pulse and can be triggered by switch or push button.| Code | Volt | Relay Electrical Diagram | N.O. | Total Relays Contacts | Relay Contacts 6.3 | Notes | Relay Socket |
|---|---|---|---|---|---|---|---|
| 40405 | 24 | C12 | 10 | 5 | 5 | programmable time 0.5 sec. - 6h | E, F, G, K, L |
6.16 24V Timing Relay
| Code: | 40405 |
| Volt: | 24 |
| Relay Electrical Diagram: | C12 |
| N.O.: | 10 |
| Total Relays Contacts: | 5 |
| Relay Contacts 6.3: | 5 |
| Notes: | programmable time 0.5 sec. - 6h |
| Relay Socket: | E, F, G, K, L |
6.18 THRESHOLD RELAY 24V
| Code: | 4140-N01 |
| Volt: | 24 |
| Ampere: | 140 |
| Notes: | 25,6V - 26,6V |
6.34 Diodes Box 3x3A OUT
| Code: | 546.10 |
| Volt: | 1000 |
| Ampere: | 3 diodes of 3A OUT |
| Relay Socket: | A, B, C, D |
6.35 Diodes Box 3X3A IN
| Code: | 546.30 |
| Volt: | 1000 |
| Ampere: | 3 diodes of 3A IN |
| Relay Socket: | A, B, C, D |
6.36 Diodes Box 4x3A IN
| Code: | 546.60 |
| Volt: | 1000 |
| Ampere: | 4 diodes of 3A IN |
| Relay Socket: | A, B, C, D |
Delivered with:
